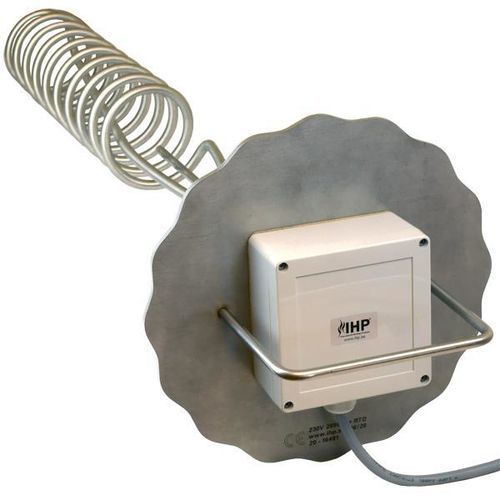

Stainless steel immersion heater

PTFE

Product overview
The immersion heater 20-16544 is designed for heating liquids in 1000 L IBC containers. Installed through the top opening, it provides controlled heating for water, oils and mild acidic or alkaline mixtures. The unit includes a digital PID controller (0–90°C) with ramp and programmable set points and is CE marked. A PTFE-coated option is available for more aggressive fluids.

Construction and design

• Tube heating element in stainless steel AISI 316L (1.4404)
• IP65-rated design suitable for outdoor and industrial environments
• Element diameter compatible with standard IBC top openings (ø100 mm)
• Fixed handle for lifting and hanging
• Active heating zone requires minimum half-filled IBC (min. liquid level 500 mm)
• Optional PTFE coating for acidic fluids

Package content
Delivered ready to use: immersion heater, control cabinet with digital controller, CE manual. Cable between heater and control unit approx. 2800 mm. Supply cable: rubber H07RN-F 1.6 m (3G1.5 mm²) with grounded Schuko plug. Earth circuit breaker not included.

Applications
Controlled heating of water, oils, mild acids and alkaline mixtures in IBC 1000 L containers for industrial processes and storage temperature maintenance.

Technical specification

• Surface load: 2.2 W/cm²
• Power: 2000 W
• Supply: 230 V single-phase
• Element length: 950 mm
• Element diameter: Ø100 mm
• Heated zone length: 300 mm
• Minimum liquid level during heating: 500 mm (half full)
• Material: AISI 316L (1.4404) stainless steel
• Ingress protection: IP65
• Integrated temperature sensor: PT100
• Controller: Digital PID controller 0–90°C (CE marked) with ramp and programmable steps
• Cable between heater and control unit: approx. 2800 mm
• Supply cable: Rubber cable H07RN-F 1.6 m (3G1.5 mm²) with grounded Schuko plug
• Option: PTFE coating for acidic fluids
• Delivered with control cabinet and CE manual

Standard range

• 20-16544 — ø100 x 950 mm — 2000 W — 230 V — IBC 1000 L
• 20-16544-PTFE — ø100 x 950 mm — 2000 W — 230 V — IBC 1000 L
