Jacket drum heater 30 series

oilfor liquidsfor water

Product description

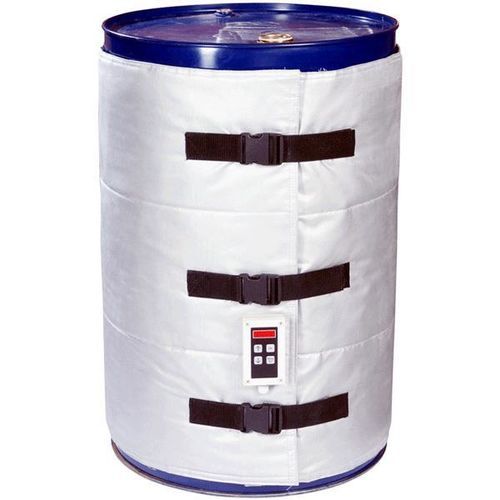

This heating jacket is designed as a heating blanket and is manufactured from Teflon-treated polyester with a built-in heating cable as the heat source. The jacket is secured with adjustable buckles and straps for straightforward mounting.

Controller
For precise temperature control and simple operation the heating jacket is fitted with a digital controller 0–200°C. The controller offers ramping and timer functions and displays temperature in Celsius or Fahrenheit.

Applications
The heating jackets are intended for heat retention and industrial heating of fats, butter, Vaseline, resins, water, oils, diesel, lubricating oils, heating oils and other liquids stored in drums. An insulation lid is available as an accessory.

Technical specification

• Heating jacket material: Teflon-treated polyester
• Built-in insulation: polyester
• Supply: 230V or 110V
• Digital controller: 0–200°C
• Timer function
• Ramping function
• Display: °C / °F selectable
• Protection class: IP40 (IP54 available as option)
• Adjustable buckles
• Three-metre connection cable
• Optional insulation lid
• Note: The heating jacket must never overlap itself

Standard range

• Article number | Dimension | Power | Supply | Drum diameter | Drum dimensions
• 30-9872 | 1200 x 400 mm | 380W | 230V | ø344 to ø382 mm | 25 liter
• 30-9871 | 1330 x 460 mm | 440W | 230V | ø385 to ø424 mm | 50 liter
• 30-9873 | 1650 x 370 mm | 700W | 230V | ø487 to ø525 mm | 105 liter
• 30-9870 | 1990 x 800 mm | 1200W | 230V | ø592 to ø634 mm | 200 liter
• 30-9870A | 1990 x 800 mm | 1200W | 110V | ø592 to ø634 mm | 200 liter
• 30-9870B | 1990 x 800 mm | 1500W | 230V | ø592 to ø634 mm | 200 liter
• 30-1921A | ø600 x 100 mm | - | - | | 200 liter
