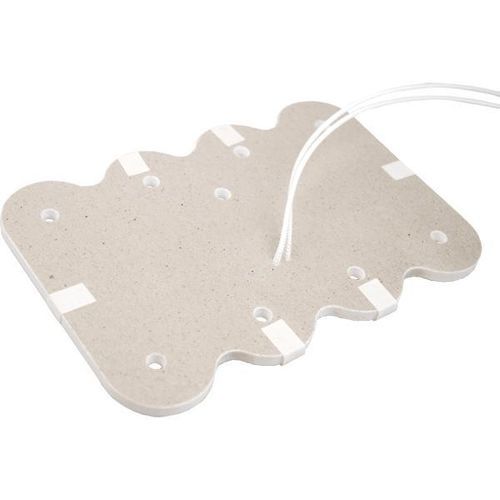

Stainless steel heater

for the food industryflat

Description
Flat ceramic strip heaters (ceramic flat heaters) for contact heating in industrial processes. Designed for uniform surface heating where compact, adaptable heating elements are required. Typical sectors: plastic forming, packaging and vacuum packing, food processing, anti-condensation systems and extruders.

Construction and design

• Most models use spiral resistance wire embedded or threaded through ceramic modules.
• Available with a stainless steel sheath for protection or as flexible ceramic heater pads without casing.
• Custom shapes, holes, slots and fastening features can be manufactured to fit machine interfaces.
• Internal Type J or Type K thermocouples can be integrated; other sensor types available on request.
• Compatible with standard PID controllers for precise temperature regulation.

Applications

• Plastic forming
• Packaging machines and vacuum packing
• Food industry
• Anti-condensation solutions
• Extruders

Technical specifications

• Surface load: up to 8 W/cm²
• Working temperature: up to 420°C
• Customized voltage
• Supply: Single phase / Dual phase / Three phase (specify connection)
• Integrated sensors: Type J or Type K thermocouples available
• Length range: 112 mm to 1800 mm
• Standard thickness: 12 ± 1 mm
• Casing: stainless steel
• Insulation: ceramic fiber included
• Resistance wire: Nickel-Chromium (NiCr) 80/20
• Options: extra-flexible ceramic heater pads up to 900°C
