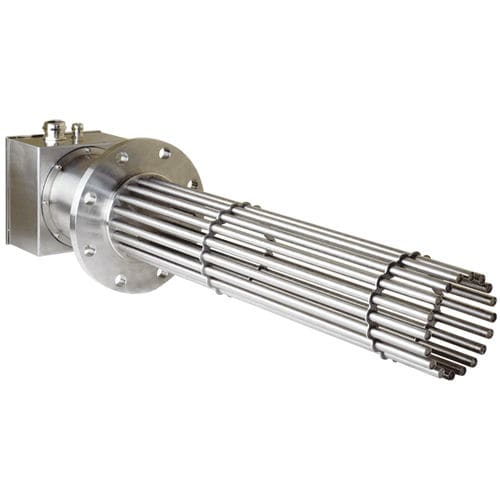

Flange immersion heater

copperstainless steeltitanium

Overview
IHP designs immersion heaters for heating and temperature maintenance of oil and oil-based fluids. Tubular immersion heaters are engineered for even power distribution, appropriate material selection and integrated control options to deliver precise, low-maintenance heating adapted to fluid properties and process requirements.

Features

• Option for one or more sensor pockets with integrated thermocouples
• Thermostats commonly mounted in the connection box for temperature limitation
• Can be integrated with IHP electrical control cabinets; control cabinets customizable for application-specific control and safety
• Industrial tubular construction: heaters welded or soldered into element heads, nipples and flanges
• Suitable for built-in installation or external mounting for easy access and connection

Applications

• Industrial heating baths
• Storage and process tanks
• Through-flow heaters
• Boilers and heat exchangers
• Radiators and oil circulation systems

Related products

• Over-the-side heaters
• Hydraulic oil heaters
• Immersion heaters for water
• Tubular heaters
• Ceramic bobbin heaters (700 °C)

Technical specification
Surface load up to 10 W/cm²
Working temperature up to 800 °C
Power supply customized according to demand; internal Δ- or Y-connection available
Common element head threads: G3/4, G1, G1 1/4, G1 1/2, G2, G2 1/2, M45x2, M77x2
Typical element materials: copper; stainless steel; acid-resistant stainless steel; 254 SMO; Incoloy® 800; Incoloy® 825; aluminum; titanium

Technical details

• Surface load: up to 10 W/cm²
• Working temperature: up to 800 °C
• Power supply: customized; internal Δ or Y connection available
• Element head threads: G3/4; G1; G1 1/4; G1 1/2; G2; G2 1/2; M45x2; M77x2
• Materials: copper; stainless steel; acid-resistant stainless steel; 254 SMO; Incoloy® 800; Incoloy® 825; aluminum; titanium
• Sensors: one or more sensor pockets and integrated thermocouples (optional)
• Safety: thermostats in connection box for temperature limitation
• Construction and mounting: tubular heaters welded/soldered into element heads, nipples and flanges; built-in or externally mounted for easy access
