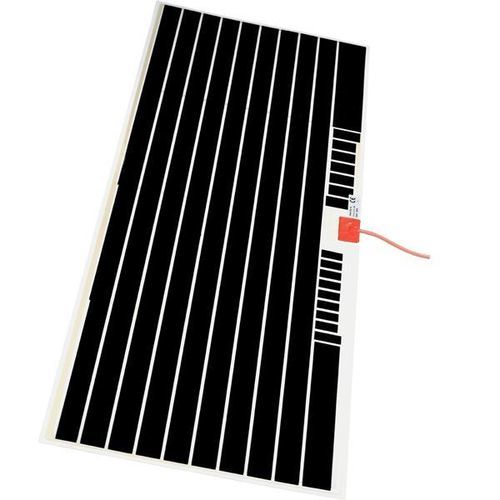

Flexible heating element

polyesterPETindustrial

Product overview
Polyester foil heaters, also called PET heaters, are very thin and flexible heating elements. They provide high heat transfer capacity and uniform temperature distribution across the active area. A PET heater is suitable for contact heating of flat and cylindrical surfaces and can also be integrated into reflector applications. These extremely flexible foil heaters are manufactured by a proven screen-printing process that allows the resistive traces to be made thin, wide and homogeneous. The foil heaters can be supplied with various self-adhesive backing options to suit different installation environments. Surface-mounted sensors, thermocouples, thermostats and fuses are commonly used for temperature control and protection.

Technical specifications

• Surface load up to 0.6 W/cm² (recommended up to 0.15 W/cm²)
• Operating temperature range: -30°C to +90°C continuous, +100°C short-term exposure
• Electrical supply and terminations customizable to customer requirements
• Maximum manufacturing size per unit: 1000 mm × 600 mm (L × W)
• Standard thickness approximately 0.3 mm
