Oil drum heater 30 series

for liquidsfor waterfor diesel

Product overview

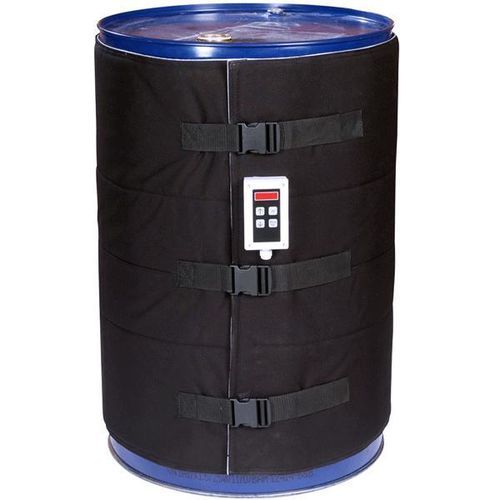

The drum heater is a heating blanket constructed from Teflon-treated polyester with integrated insulation and an embedded heating cable. It is delivered with adjustable straps and buckles and is controlled by a digital regulator (0–90°C) that offers precise temperature control, timer and ramping functions. The display shows actual temperature and can be switched between °C and °F.

Applications
Suitable for industrial heating and temperature maintenance of liquids stored in steel drums such as water, fats, butter, vaseline, resins, oils, diesel and lubricants. Insulation lids are available as an option to improve thermal efficiency.

Technical specifications

• Material: Teflon-treated polyester (Teflon-coated polyester)
• Built-in insulation: Polyester
• Supply voltage: 230V or 110V
• Controller: Digital controller 0–90°C (0–40°C option available)
• Functions: Timer; Ramping (soft-start/controlled ramp)
• Temperature display: °C and °F selectable
• Ingress protection: IP40 (IP54 optional)
• Fastening: Adjustable buckles and straps
• Connection cable: 3 m
• Options: Insulation lid

Standard range

• 30-9856 | 1200 x 400 mm | 225 W | 230 V | ø344–ø382 mm | 25–30 L
• 30-9856A | 1200 x 400 mm | 240 W | 110 V | ø344–ø382 mm | 25–30 L
• 30-9857 | 1330 x 460 mm | 300 W | 230 V | ø385–ø424 mm | 50–60 L
• 30-9857A | 1330 x 460 mm | 300 W | 110 V | ø385–ø424 mm | 50–60 L
• 30-9856B | 1650 x 370 mm | 400 W | 230 V | ø487–ø525 mm | 105 L
• 30-9856C | 1650 x 370 mm | 400 W | 110 V | ø487–ø525 mm | 105 L
• 30-9859 | 1990 x 450 mm | 530 W | 230 V | ø592–ø634 mm | 200 L
• 30-9859A | 1990 x 450 mm | 530 W | 110 V | ø592–ø634 mm | 200 L
• 30-9858 | 1900 x 800 mm | 1200 W | 230 V | ø592–ø634 mm | 200 L
• 30-9858A | 1900 x 800 mm | 1200 W | 110 V | ø592–ø634 mm | 200 L
• 30-1921 | ø600 x 100 mm | - | - | — | 200 L (insulation lid)

Warning

• The drum heater must never overlap itself.
