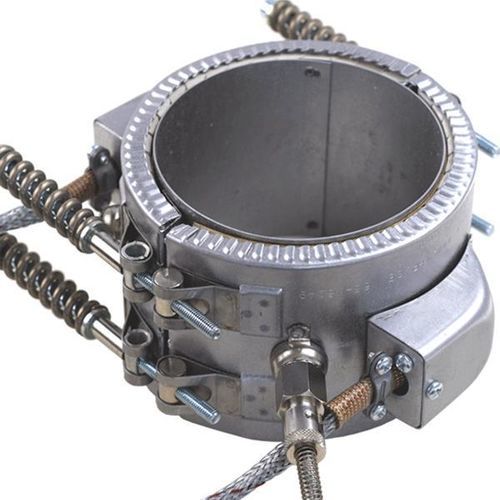

Heat-resistant band heater

insulatedceramic

Product description IHP supplies ceramic band heaters designed for very high operating temperatures and customized to fit specific machines and processes. Units can be supplied with integrated sensors and measurement holes positioned directly on the heated surface to facilitate process control and temperature monitoring.

Design and materials Standard diameter range: ø60 mm to ø630 mm. Standard width range: 30 mm to 450 mm. Heating elements are embedded in precision ceramic (steatite) blocks to ensure electrical insulation and thermal stability. Each heater is supplied with internal thermal insulation to minimise heat loss and maintain uniform surface temperature. Connection options include connection boxes, various connectors, or heat-resistant leads with ceramic beads.

Technical specification

• Surface load: up to 9 W/cm² (recommended up to 3 W/cm²)
• Maximum working temperature: 900 °C
• Voltage: customized; specify ∆- or Y-connection
• Built-in thermocouple option: type J or K (other types on request depending on conditions)
• Resistance element: NiCr 80/20
• Insulation: ceramic (steatite) blocks and ceramic fiber thermal insulation
• Casing materials: aluminized steel, stainless steel or Inconel
• Current leakage (cold condition): < 0.75 mA/kW

Related products

• Mica band heaters 320 °C
• Mica band heaters expandable 320 °C
• Ceramic band heaters 420 °C

Technical characteristics

• Diameter range: ø60 mm – ø630 mm
• Width range: 30 mm – 450 mm
• Surface load capability: up to 9 W/cm²
• Recommended continuous surface load: up to 3 W/cm²
• Thermocouple: internal J or K available
• Typical applications: high-temperature process heating, mould and die heating, extruders, industrial ovens
