EMC-shielded cable gland OMBT 01

nickel-plated brassstainless steelnitrile butadiene rubber (NBR)

Product

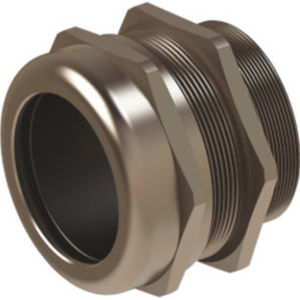

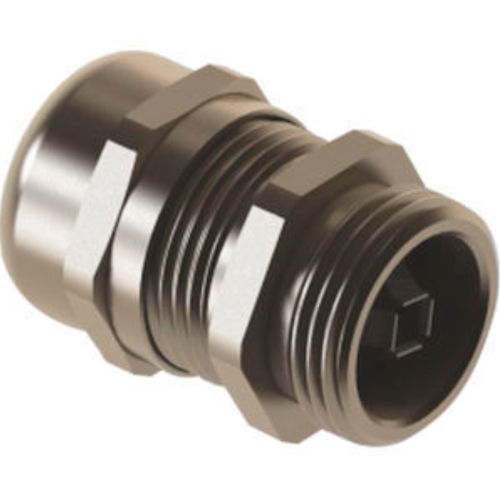

Metal EMC cable glands of the OMBT/OPBT series designed to ensure EMC continuity and environmental sealing for shielded cables. Available in Metric (EN 60423) and PG (DIN 40430) threads for industrial enclosures requiring IP68 protection.

Materials and components

• Cap nut: Nickel plated brass
• Clamping insert: Polyamide PA6 V2
• Sealing ring: TPV
• EMC spring: AISI 301 stainless steel
• Gland body: Nickel plated brass
• O-ring: NBR
• Connection thread: Metric (EN 60423) / PG (DIN 40430)

Properties

• Easy to assemble
• For shielded cables (EMC continuity)
• Suitable for cables with or without inner sheath
• High electrical conductivity for effective shielding connection

Technical Data
AG Thread | Code | H (mm) | GL (mm) | Wrench B (mm) | Wrench C (mm) | Clamping Range (mm)
M 12 x 1,5 | OMBT 01 | 26 | 6 | 17 | 17 | 3 - 6,5
M 16 x 1,5 | OMBT 02 | 23 | 7 | 19 | 17 | 4 - 8
M 20 x 1,5 | OMBT 03 | 26,5 | 8 | 22 | 22 | 6 - 12
M 25 x 1,5 | OMBT 04 | 28 | 8 | 27 | 24 | 10 - 14
M 32 x 1,5 | OMBT 05 | 31,5 | 9 | 36 | 30 | 13 - 18
M 40 x 1,5 | OMBT 06 | 38 | 9 | 46 | 41 | 18 - 25
M 50 x 1,5 | OMBT 07 | 43 | 9 | 55 | 50 | 22 - 32
M 63 x 1,5 | OMBT 08 | 48 | 14 | 70 | 65 | 33 - 44
M 75 x 1,5 | OMBT 18 | 58 | 20 | 90 | 90 | 50 - 63
M 90 x 2,0 | OMBT 19 | 61 | 20 | 100 | 100 | 60 - 70

PG Thread | Code | H (mm) | GL (mm) | Wrench B (mm) | Wrench C (mm) | Clamping Range (mm)
PG 7 | OPBT 01 | 26 | 6 | 17 | 17 | 3 - 6,5
PG 9 | OPBT 02 | 23 | 6 | 17 | 17 | 4 - 8
PG 11 | OPBT 03 | 24,5 | 6 | 22 | 22 | 5 - 10
PG 13,5 | OPBT 04 | 26,5 | 6,5 | 22 | 22 | 6 - 12
PG 16 | OPBT 05 | 28 | 6,5 | 24 | 24 | 10 - 14
PG 21 | OPBT 06 | 31,5 | 7 | 30 | 30 | 13 - 18
PG 29 | OPBT 07 | 43 | 8 | 41 | 41 | 18 - 25
PG 36 | OPBT 08 | 47 | 9 | 50 | 50 | 22 - 32
PG 42 | OPBT 09 | 48 | 12 | 60 | 60 | 30 - 38
PG 48 | OPBT 10 | 52 | 14 | 65 | 65 | 33 - 44

Technical specifications

• Cap nut: Nickel plated brass
• Clamping insert: Polyamide PA6 V2
• Sealing ring: TPV
• EMC spring: AISI 301
• Gland body: Nickel plated brass
• O-ring: NBR
• Connection thread: Metric (EN 60423) and PG (DIN 40430)
• Protection: IP68 up to 5 bar
• Temperature ranges: -20 °C to +100 °C (standard) and -40 °C to +150 °C (extended)
• Designed for shielded cables and suitable for cables with or without inner sheath
• High conductivity to maintain EMC continuity
