Miniature cable gland MG series

nickel-plated brassIP68strain relief

Product

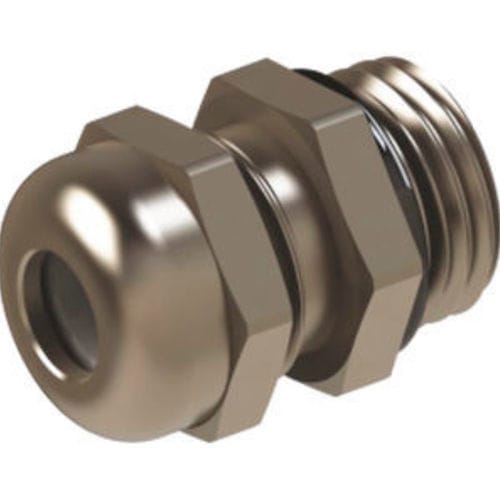

Mini metal cable glands, MGM series, designed for cable sealing and strain relief in electrical and lighting applications.

Details
Cap nut : Nickel plated brass
Sealing ring : TPV / Silicone / EPDM
Gland body : Nickel plated brass
O-ring : NBR / TPV / Silicone / EPDM
Connection thread : Metric (EN 60423) / PG (DIN 40430)
Protection class : IP68 - 3 bar
Temperature range : -20 °C +100 °C / -40 °C +150 °C

Properties

• Easy to assemble
• Long thread and stainless versions available on request
• Suitable for installations with limited space
• Commonly used in the lighting industry

Technical Data (Metric/PG thread cable glands)
AG Thread | Code | H mm | GL mm | Wrench | Clamping Range mm
M 6 x 1,0 | MGM6-23 | 10,5 | 6 | 8 | 2-3
M 8 x 1,25 | MGM8s-35 | 15 | 6 | 11 | 3-5
M 8 x 1,25 | MGM8-24 | 15 | 6 | 14 | 2-4
M 10 x 1,5 | MGM10s-46 | 14,5 | 6 | 12 | 4-6
M 10 x 1,5 | MGM10-24 | 15 | 6 | 14 | 2-4
M 10 x 1,5 | MGM10-36 | 15 | 6 | 14 | 3-6
M 12 x 1,5 | MGM12-24 | 15 | 6 | 14 | 2-4
M 12 x 1,5 | MGM12-36 | 15 | 6 | 14 | 3-6
M 16 x 1,5 | MGM16-68 | 16,5 | 6 | 18 | 6-8
PG 7 | MGP7-24 | 15 | 6 | 14 | 2-4
PG 7 | MGP7-36 | 15 | 6 | 14 | 3-6
PG 7 | MGP7-68 | 16,5 | 6 | 17 | 6-8
PG 9 | MGP9-46 | 16,5 | 6 | 17 | 4-6
PG 9 | MGP9-68 | 16,5 | 6 | 17 | 6-8

Technical specifications

• Materials: Nickel plated brass (cap nut, gland body)
• Sealing materials: TPV, Silicone, EPDM
• O-ring materials: NBR, TPV, Silicone, EPDM
• Connection thread standards: Metric (EN 60423) and PG (DIN 40430)
• Ingress protection: IP68 (3 bar)
• Operating temperature ranges: -20 °C to +100 °C and -40 °C to +150 °C (depending on sealing material)
• Features: Easy to assemble; available with long thread and stainless steel versions on request
• Typical application: Lighting industry and other limited application areas
• Multiple thread sizes and clamping ranges available (see technical data table for codes and dimensions)
