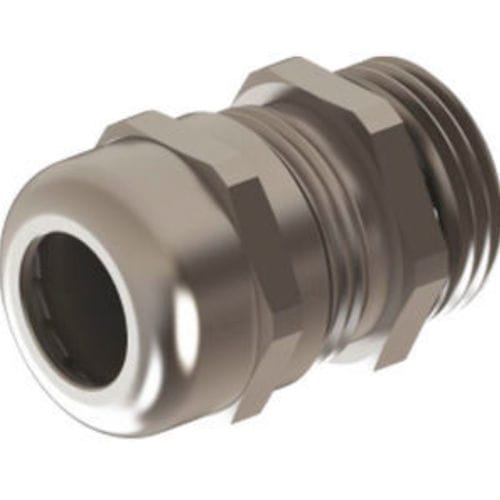

Stainless steel cable gland OMSG 01/02

polyamidePA6nitrile butadiene rubber (NBR)

Product Overview
Cap nut: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
Clamping insert: Polyamide PA6 V2
Sealing ring: TPV
Gland body: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
O-ring: NBR
Connection thread: Metric (EN 60423) / PG (DIN 40430)
Protection class: IP68 - 5 bar
Temperature range: -20 °C to +100 °C / -40 °C to +150 °C (depending on components)

Properties

• High corrosion resistance suitable for aggressive and marine environments
• Smooth surface finish for hygienic and clean applications
• Easy to assemble with reliable clamping insert
• Suitable for food, pharmaceutical and on-/off-shore industrial applications

Technical Data (metric / PG thread overview)
AG Thread | Code | H mm | GL mm | Wrench B mm | Wrench C mm | Clamping Range mm
M12 x 1.5 | OMSG 01/02 | 23 | 6 | 17 | 17 | 4 - 8
M16 x 1.5 | OMSG 02/03 | 24.5 | 7 | 22 | 22 | 5 - 10
M16 x 1.5 | OMSG 02/04 | 26.5 | 7 | 22 | 22 | 6 - 12
M20 x 1.5 | OMSG 03/05 | 28 | 8 | 24 | 24 | 10 - 14
M25 x 1.5 | OMSG 04/04 | 26.5 | 8 | 27 | 22 | 6 - 12
M25 x 1.5 | OMSG 04ES | 31.5 | 8 | 30 | 30 | 9 - 17
M25 x 1.5 | OMSG 04/06 | 31.5 | 8 | 30 | 30 | 13 - 18
M32 x 1.5 | OMSG 05/07 | 38 | 9 | 41 | 41 | 18 - 25
M40 x 1.5 | OMSG 06/08 | 43 | 9 | 50 | 50 | 22 - 32
M50 x 1.5 | OMSG 07/09 | 47 | 9 | 60 | 60 | 30 - 38
M50 x 1.5 | OMSG 07/10 | 48 | 9 | 65 | 65 | 33 - 44

PG 7 | OPSG 01/02 | 23 | 6 | 17 | (colspan) | 4 - 8
PG 9 | OPSG 02/03 | 24.5 | 6 | 22 | (colspan) | 5 - 10
PG 9 | OPSG 02/04 | 26.5 | 6 | 22 | (colspan) | 6 - 12
PG 11 | OPSG 03/04 | 26.5 | 6 | 22 | (colspan) | 6 - 12
PG 11 | OPSG 03/05 | 28 | 6 | 24 | (colspan) | 10 - 14
PG 13.5 | OPSG 04/05 | 28 | 6.5 | 24 | (colspan) | 10 - 14
PG 16 | OPSG 05/06 | 31.5 | 6.5 | 30 | (colspan) | 13 - 18
PG 21 | OPSG 06RS | 31.5 | 7 | 30 | (colspan) | 9 - 17
PG 29 | OPSG 07/08 | 43 | 8 | 50 | (colspan) | 22 - 32
PG 36 | OPSG 08/09 | 47 | 10 | 60 | (colspan) | 30 - 38
PG 42 | OPSG 09/10 | 48 | 12 | 65 | (colspan) | 33 - 44

Technical specifications

• Cap nut material: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
• Gland body material: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
• Clamping insert: Polyamide PA6 V2
• Sealing ring: TPV
• O-ring: NBR
• Connection threads available: Metric (EN 60423) and PG (DIN 40430)
• Ingress protection: IP68 up to 5 bar
• Operating temperature ranges: -20 °C to +100 °C and -40 °C to +150 °C (depending on components)
• Suggested applications: food industry, pharmaceutical, offshore and onshore industrial installations
• Key features: corrosion resistance, hygienic smooth surfaces, easy assembly
