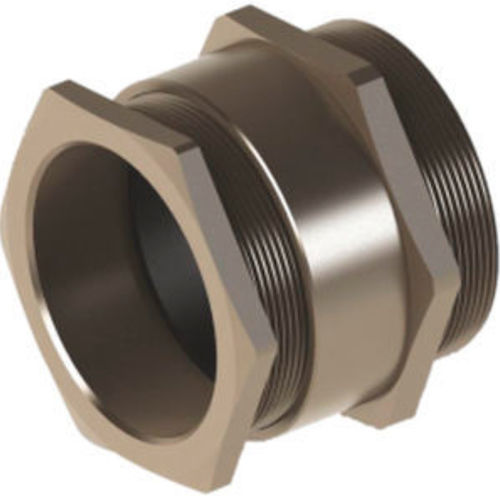

Nickel-plated brass cable gland A2

IP54strain reliefmetric

Product details
Cap nut: nickel-plated brass
Sealing ring: EPDM / TPV
Gland body: nickel-plated brass
O-ring: NBR
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP54
Temperature range: -20 °C to +100 °C (standard); -40 °C to +150 °C (extended)
Properties: easy to assemble; high mechanical stability; optimum strain relief

Technical Data
Available series and codes:

• Metric series DOMRN 01–09 — M12 to M63 (see code ranges DOMRN 01…09)
• PG series DOPRN 01–11 — PG7 to PG48 (see code ranges DOPRN 01…11)
• Diameter entries ∅55 / ∅60 / ∅70 (codes DOPRN∅ 55, DOPRN∅ 60, DOPRN∅ 70)

Caractéristiques / Spécifications techniques

• Materials: cap nut and gland body — nickel-plated brass; sealing ring — EPDM/TPV; O-ring — NBR
• Protection class: IP54
• Temperature range: -20 °C to +100 °C (standard); -40 °C to +150 °C (extended)
• Connection thread standards: Metric (EN60423) and PG (DIN 40430)
• Key properties: easy assembly; high mechanical stability; optimum strain relief
• Available sizes and product codes: Metric DOMRN 01–09 (M12–M63), PG DOPRN 01–11 (PG7–PG48), diameter entries ∅55/∅60/∅70 as listed in technical data
