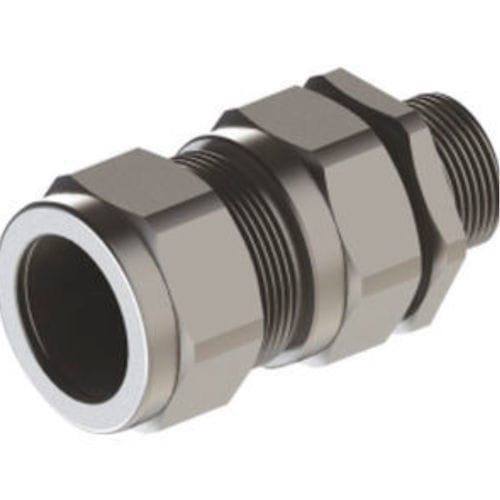

Brass cable gland WACG series

nickel-plated brassaluminiumstainless steel

Product
Armoured cable glands for industrial applications - WACG Series

Details
Type: WACG single-compression gland
Certificates: PT, CE, RoHS, ISO9001, ISO14001, ISO45001
Materials: MS58 brass (with or without nickel plating); stainless steel AISI303; stainless steel AISI316L; aluminium
Standards: EN 60079-0:2012, EN 60079-1:2007, EN 60079-31:2009; BS6121
Protection class: IP66 / IP68
Temperature range: NBR -30 °C to +120 °C; Neoprene -40 °C to +100 °C; Silicone -60 °C to +180 °C; TPE/V -30 °C to +100 °C
Cable type: SWA (single wire armour); STA and other cable types optional

Technical Data
Product Size | Product Code | Thread | AG NPT | PG | A Min | B Min | B Max | Ø d (Armour) Min | Ø d (Armour) Max | GL min. mm | Wrench mm
16 | WACGXX/16/X | M16x1.5 | 1/2" | PG9 | 8.6 | 6.1 | 13.2 | 0.8 | 1.0 | 15 | 24
20ss | WACGXX/20ss/X | M20ssx1.5 | 1/2" | PG11ss | 8.6 | 6.1 | 13.2 | 0.8 | 1.0 | 15 | 24
20s | WACGXX/20s/X | M20sx1.5 | 1/2" | PG11s | 11.6 | 9.5 | 15.9 | 0.8 | 1.25 | 15 | 24
20 | WACGXX/20/X | M20x1.5 | 1/2" | PG13.5 | 13.9 | 12.5 | 20.9 | 0.8 | 1.25 | 15 | 30
25s | WACGXX/25s/X | M25sx1.5 | 3/4" | PG21s | 19.9 | 14.0 | 22.0 | 1.25 | 1.6 | 15 | 38
25 | WACGXX/25/X | M25x1.5 | 3/4" | PG21 | 19.9 | 18.2 | 26.2 | 1.25 | 1.6 | 15 | 38
32 | WACGXX/32/X | M32x1.5 | 1" | PG29 | 26.2 | 23.7 | 33.9 | 1.6 | 2.0 | 15 | 45
40 | WACGXX/40/X | M40x1.5 | 1 1/4" | PG36s | 33.9 | 27.9 | 40.4 | 1.6 | 2.0 | 15 | 55
50s | WACGXX/50s/X | M50sx1.5 | 1 1/2" | PG36 | 38.1 | 35.2 | 46.7 | 2.0 | 2.5 | 15 | 60
50 | WACGXX/50/X | M50x1.5 | 2" | PG42 | 44.0 | 40.4 | 53.1 | 2.0 | 2.5 | 15 | 70
63s | WACGXX/63s/X | M63sx1.5 | 2" | PG48 | 49.9 | 45.6 | 59.4 | 2.0 | 2.5 | 15 | 75
63 | WACGXX/63/X | M63x1.5 | 2 1/2" | - | 55.9 | 54.6 | 65.9 | 2.0 | 2.5 | 15 | 80
75s | WACGXX/75s/X | M75sx1.5 | 2 1/2" | - | 61.9 | 59.0 | 72.1 | 2.0 | 2.5 | 15 | 90
75 | WACGXX/75/X | M75x1.5 | 3" | - | 67.9 | 66.7 | 78.5 | 2.5 | 3.0 | 15 | 100
90 | WACGXX/90/X | M90x2 | 3" | - | 79.9 | 76.2 | 90.4 | 3.0 | 3.5 | 15 | 115
100 | WACGXX/100/X | M100x2 | - | - | 90.0 | 86.1 | 101.5 | 3.15 | 4.0 | 15 | 123
115 | WACGXX/115/X | M115x2 | - | - | 97.9 | 101.5 | 110.3 | 3.15 | 4.0 | 15 | 133
130 | WACGXX/130/X | M130x2 | - | - | 114.9 | 114.2 | 123.3 | 3.15 | 4.0 | 15 | 146

Features / Technical specifications

• Type: Single-compression armoured cable gland (WACG)
• Certificates: PT, CE, RoHS, ISO9001, ISO14001, ISO45001
• Materials available: MS58 brass (with or without nickel plating), stainless steel AISI303, stainless steel AISI316L, aluminium
• Standards compliance: EN 60079-0:2012, EN 60079-1:2007, EN 60079-31:2009; BS6121
• Ingress protection: IP66 / IP68
• Temperature ranges by seal material: NBR -30 °C to +120 °C; Neoprene -40 °C to +100 °C; Silicone -60 °C to +180 °C; TPE/V -30 °C to +100 °C
• Cable types supported: SWA (single wire armour); STA and other cable types optional
• Available sizes and dimensional data: see Technical Data table above (Product Size, Product Code, thread, PG/AG designation, dimensional A/B, armour Ø range, GL min and wrench sizes)
