Nickel-plated brass cable gland CW series
brassIP67IP66

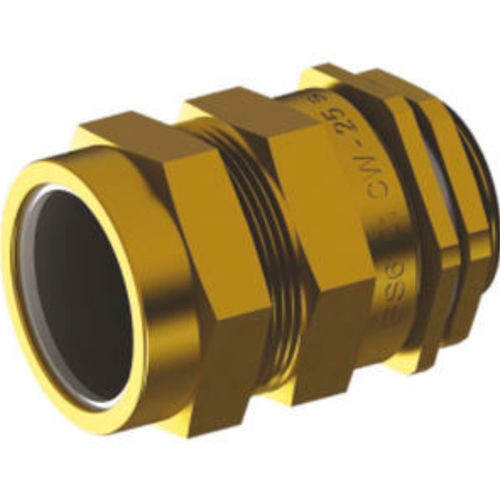

Nickel-plated brass cable gland - CW series - ORTAC - brass / IP67 / IP66
Nickel-plated brass cable gland - CW series - ORTAC - brass / IP67 / IP66
Nickel-plated brass cable gland - CW series - ORTAC - brass / IP67 / IP66 - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass, brass
Protection level
IP67, IP66, armored
Other characteristics
for armored cables, NPT, PG thread, metric
Cable diameter

Min.: 11.5 mm
(0.45 in)

Max.: 91 mm
(3.58 in)

Thread diameter

Min.: 20 mm
(0.79 in)

Max.: 90 mm
(3.54 in)

Clamping range

Min.: 10 mm
(0.4 in)

Max.: 20 mm
(0.8 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Product
Armoured cable glands CW Series suitable for single compression sealing of armoured (SWA) cables in industrial installations.

Type
  • CW (single compression gland)


Materials & Standards
  • Material: Brass with or without nickel plating
  • Standards: BS 6121
  • Ingress protection: IP66 & IP67
  • Temperature range: -20 °C to +80 °C
  • Thread options: Metric, NPT, BSP & PG


Function & Application
For indoor and outdoor use with steel wire armoured (SWA) cables. The CW gland seals the outer sheath and secures the armour with a dedicated clamp that provides an electrical bond between the cable armour and the gland.

Accessories
  • Matching accessories available: PVC shrouds, locknuts & earth tag


Technical Data (sizes)
20s | CW-M20s | M20 x 1.5 | 1/2 | 11.5 | 15.5 | 10
20L | CW-M20L | M20 x 1.5 | 1/2 | 14 | 20.5 | 10
25s | CW-M25s | M25 x 1.5 | 3/4 | 18 | 24 | 10
25L | CW-M25L | M25 x 1.5 | 3/4 | 20 | 27.2 | 10
32L | CW-M32L | M32 x 1.5 | 1 | 26.3 | 33.5 | 10
40s | CW-M40s | M40 x 1.5 | 1 1/4 | 31.5 | 39.5 | 13
40L | CW-M40L | M40 x 1.5 | 1 1/4 | 32 | 40 | 13
50s | CW-M50s | M50 x 1.5 | 1 1/2 | 38.2 | 46.3 | 13
50L | CW-M50L | M50 x 1.5 | 2 | 44 | 52.6 | 13
63s | CW-M63s | M63 x 1.5 | 2 | 50.1 | 59 | 14
63L | CW-M63L | M63 x 1.5 | 2 1/2 | 56 | 65.3 | 14
75s | CW-M75s | M75 x 1.5 | 2 1/2 | 62 | 71.6 | 15
75L | CW-M75L | M75 x 1.5 | 3 | 68 | 78 | 15
90L | CW-M90L | M90 x 2 | 3 | 80.5 | 91 | 20

Technical specifications
  • Type: CW single compression armoured cable gland
  • Material: Brass (with or without nickel plating)
  • Standards: BS 6121
  • Ingress Protection: IP66 & IP67
  • Operating temperature: -20 °C to +80 °C
  • Available thread options: Metric, NPT, BSP & PG
  • Intended use: Indoor or outdoor use with steel wire armoured (SWA) cables
  • Function: Outer sheath seal and armour-specific clamp providing electrical bonding
  • Available accessories: PVC shrouds, locknuts, earth tag
  • Available product sizes and codes: See Technical Data (sizes) section above
