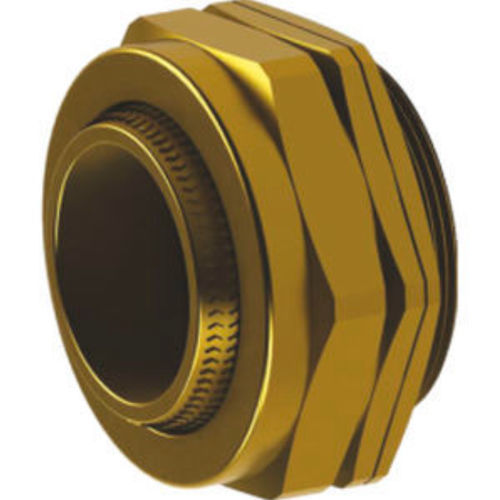

Nickel-plated brass cable gland BW series
brassPG threadmetric

Nickel-plated brass cable gland - BW series - ORTAC - brass / PG thread / metric
Nickel-plated brass cable gland - BW series - ORTAC - brass / PG thread / metric
Nickel-plated brass cable gland - BW series - ORTAC - brass / PG thread / metric - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass, brass
Other characteristics
PG thread, metric, NPT
Cable diameter

Max.: 91 mm
(3.58 in)

Min.: 11.5 mm
(0.45 in)

Thread diameter

Max.: 90 mm
(3.54 in)

Min.: 20 mm
(0.79 in)

Clamping range

Max.: 91 mm
(3.6 in)

Min.: 11.5 mm
(0.5 in)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -80 °C
(-112 °F)

Description

Product
Armoured cable glands BW Series for mechanical retention and electrical continuity of armoured (SWA) cables in dry indoor environments.

Product Details
  • Type: BW type armoured gland
  • Material: Brass, available with or without nickel plating
  • Protection class: IP30
  • Temperature range: -80 °C to +60 °C
  • Thread options: Metric, NPT, BSP & PG
  • Application: Dry indoor use; suitable for all types of SWA cable
  • Function: Mechanical cable retention and electrical wire continuity via armoured wire
  • Accessories: Matching PVC shrouds, locknuts and earth tag available


Technical Data (Product sizes)
  • 20s — BWL-M20s — Thread: M20x1,5 — NPT: 1/2" — B Min - Max: 11.5 - 15.5 mm — GL: 10
  • 20L — BWL-M20L — Thread: M20x1,5 — NPT: 1/2" — B Min - Max: 14 - 20.5 mm — GL: 10
  • 25L — BWL-M25L — Thread: M25x1,5 — NPT: 3/4" — B Min - Max: 20 - 27.2 mm — GL: 10
  • 32L — BWL-M32L — Thread: M32x1,5 — NPT: 1" — B Min - Max: 26.3 - 33.5 mm — GL: 10
  • 40 — BWL-M40 — Thread: M40x1,5 — NPT: 1 1/4" — B Min - Max: 32 - 40 mm — GL: 15
  • 50s — BWL-M50s — Thread: M50x1,5 — NPT: 1 1/2" — B Min - Max: 38.2 - 46.3 mm — GL: 15
  • 50L — BWL-M50L — Thread: M50x1,5 — NPT: 2" — B Min - Max: 44 - 52.6 mm — GL: 15
  • 63s — BWL-M63s — Thread: M63x1,5 — NPT: 2" — B Min - Max: 50.1 - 59 mm — GL: 15
  • 63L — BWL-M63L — Thread: M63x1,5 — NPT: 2 1/2" — B Min - Max: 56 - 65.3 mm — GL: 15
  • 75s — BWL-M75s — Thread: M75x1,5 — NPT: 2 1/2" — B Min - Max: 62 - 71.6 mm — GL: 15
  • 75L — BWL-M75L — Thread: M75x1,5 — NPT: 3" — B Min - Max: 68 - 78 mm — GL: 15
  • 90 — BWL-M90 — Thread: M90x2 — NPT: 3" — B Min - Max: 80.5 - 91 mm — GL: 20


Standards & Accessories
  • Standards: Complies with BS 6121
  • Suitable for use with standard SWA cables in industrial indoor installations
  • Optional finishes and matching accessories simplify installation and earthing
