Metal cable gland OMBG 01
nitrile butadiene rubber (NBR)PA6IP68

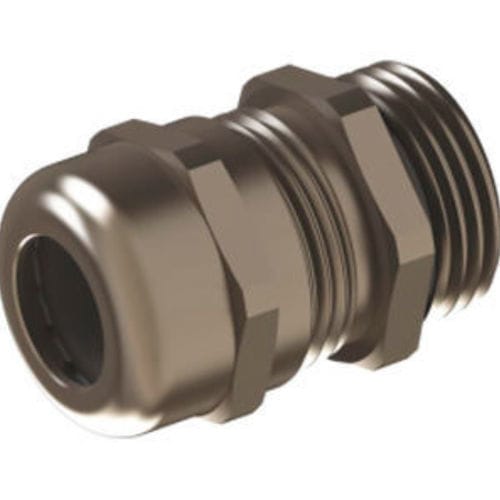

Metal cable gland - OMBG 01 - ORTAC - nitrile butadiene rubber (NBR) / PA6 / IP68
Metal cable gland - OMBG 01 - ORTAC - nitrile butadiene rubber (NBR) / PA6 / IP68
Metal cable gland - OMBG 01 - ORTAC - nitrile butadiene rubber (NBR) / PA6 / IP68 - image - 2
Add to favorites
Compare this product

Characteristics

Material
PA6, nitrile butadiene rubber (NBR), metal
Protection level
IP68
Other characteristics
metric, strain relief, threaded
Cable diameter

Max.: 44 mm
(1.73 in)

Min.: 3 mm
(0.12 in)

Thread diameter

Max.: 63 mm
(2.48 in)

Min.: 12 mm
(0.47 in)

Clamping range

Max.: 44 mm
(1.7 in)

Min.: 3 mm
(0.1 in)

Operating temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

Product
Cable glands OMBG series in nickel plated brass for metric threads. Available in standard and long-thread versions; rated IP68 (tested to 5 bar) and designed to provide high strain relief across a wide temperature range.

Materials / Components
  • Cap nut: Nickel Plated Brass
  • Clamping insert: Polyamide PA6 V2
  • Sealing ring: TPV
  • Gland body: Nickel Plated Brass
  • O-ring: NBR
  • Connection thread: Metric (EN 60423)


Key features
  • Protection class: IP68 — tested to 5 bar
  • Temperature range: continuous -20 °C to +100 °C; short term -40 °C to +150 °C
  • Easy to assemble; high strain relief
  • Available in standard and long thread versions


Technical Data - Metric Thread Cable Glands
  • M 12 x 1,5 | OMBG 01 | 22 | 6 | 14 | 14 | 3 - 6,5
  • M 16 x 1,5 | OMBG 02 | 23 | 7 | 18 | 17 | 4 - 8
  • M 20 x 1,5 | OMBG 03RS | 26,5 | 8 | 22 | 22 | 4 - 10
  • M 20 x 1,5 | OMBG 03 | 26,5 | 8 | 22 | 22 | 6 - 12
  • M 25 x 1,5 | OMBG 04 | 28 | 8 | 27 | 24 | 10 - 14
  • M 32 x 1,5 | OMBG 05 | 31,5 | 9 | 34 | 30 | 13 - 18
  • M 40 x 1,5 | OMBG 06 | 38 | 9 | 43 | 40 | 18 - 25
  • M 50 x 1,5 | OMBG 07 | 43 | 9 | 55 | 50 | 22 - 32
  • M 63 x 1,5 | OMBG 08 | 48 | 14 | 68 | 64 | 33 - 44


Technical Data - Long Thread Metric Cable Glands
  • M 12 x 1,5 | OMBG 09 | 22 | 12 | 14 | 14 | 3 - 6,5
  • M 16 x 1,5 | OMBG 10 | 23 | 12 | 18 | 17 | 4 - 8
  • M 20 x 1,5 | OMBG 11RS| 26,5 | 12 | 22 | 22 | 4 - 10
  • M 20 x 1,5 | OMBG 11 | 26,5 | 12 | 22 | 22 | 6 - 12
  • M 25 x 1,5 | OMBG 12 | 28 | 12 | 27 | 24 | 10 - 14
  • M 32 x 1,5 | OMBG 13 | 31,5 | 14 | 34 | 30 | 13 - 18
  • M 40 x 1,5 | OMBG 14 | 38 | 14 | 43 | 40 | 18 - 25
  • M 50 x 1,5 | OMBG 15 | 43 | 14 | 55 | 50 | 22 - 32
  • M 63 x 1,5 | OMBG 16 | 48 | 18 | 70 | 64 | 33 - 44


Specifications
  • Materials: Nickel plated brass (cap nut, gland body), Polyamide PA6 V2 (clamping insert), TPV (sealing ring), NBR (O-ring)
  • Connection thread: Metric (conforms to EN 60423)
  • Protection class: IP68, tested to 5 bar
  • Temperature range: continuous -20 °C to +100 °C; short term -40 °C to +150 °C
  • Available versions: standard and long thread
  • Properties: easy to assemble; high strain relief
  • Range of sizes/codes with corresponding clamping ranges provided in technical data
