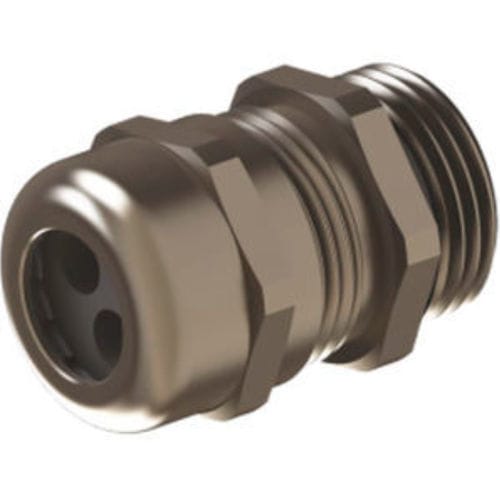

Multi-core cable gland OMBG 02A3

metalbrassnickel-plated brass

Product overview
Metal cable glands from the OMBG (multihole) and YMBG (flathole) series designed for metric-threaded enclosures. Bodies and cap nuts are nickel-plated brass with a PA6 V2 clamping insert and TPV sealing. Rated IP65, suitable for multi-core or flat cables in industrial applications.

Key features

• Materials: nickel-plated brass body and cap nut, PA6 V2 clamping insert, TPV sealing ring, NBR O-ring
• Connection thread: Metric (EN 60423)
• Protection: IP65
• Temperature range: -20 °C to +100 °C (standard) / -40 °C to +150 °C (extended)
• Designed for multihole and flathole cable entries
• Easy assembly, reliable sealing for panel and enclosure installations

Technical data summary
The OMBG series covers multihole configurations and the YMBG series covers flathole (flat slot) variants. Available metric thread sizes include M16, M20, M25, M32, M40 and M50 with hole counts and slot widths varying by code (examples below).

• OMBG (multihole): representative sizes M16–M50, hole counts from 2 up to 16 depending on code
• YMBG (flathole): representative sizes M25–M50, flat slot widths up to ~28 mm depending on code
• See manufacturer codes (OMBG / YMBG) for exact hole configurations and C dimensions

Applications & installation

• For routing multiple round or flat cables into panels, cabinets and junction boxes
• Suitable for industrial electrical enclosures, control cabinets and machinery housings
• Push-in clamping insert simplifies assembly; ensure correct code for required hole layout and cable cross-section

Ordering & notes

• Order by series and manufacturer code (OMBG xx / YMBG xx) to specify thread size and hole configuration
• Verify required temperature range and IP rating for the intended environment
• Contact supplier for detailed dimensional drawings and availability
