Stainless steel cable gland OMSG 01
polyamidenitrile butadiene rubber (NBR)PA6

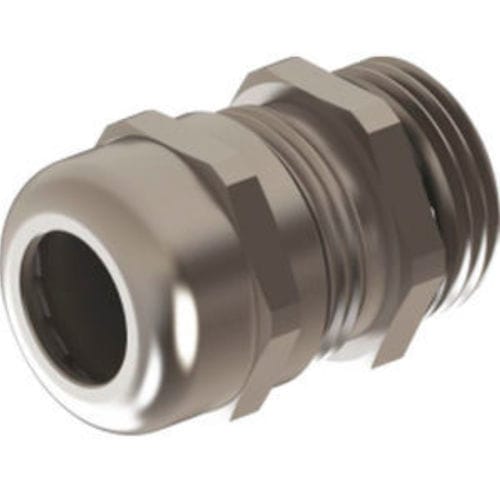

Stainless steel cable gland - OMSG 01 - ORTAC - polyamide / nitrile butadiene rubber (NBR) / PA6
Stainless steel cable gland - OMSG 01 - ORTAC - polyamide / nitrile butadiene rubber (NBR) / PA6
Stainless steel cable gland - OMSG 01 - ORTAC - polyamide / nitrile butadiene rubber (NBR) / PA6 - image - 2
Add to favorites
Compare this product

Characteristics

Material
polyamide, PA6, nitrile butadiene rubber (NBR), stainless steel
Protection level
IP68, corrosion-resistant
Other characteristics
PG thread, metric, for marine applications, for hygienic applications, for the food and beverage industry
Cable diameter

Max.: 44 mm
(1.73 in)

Min.: 3 mm
(0.12 in)

Clamping range

Max.: 44 mm
(1.7 in)

Min.: 3 mm
(0.1 in)

Operating temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

Product
Cable glands – stainless steel OMSG/OPSG series

Materials
  • Cap nut: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
  • Clamping insert: Polyamid PA6 V2
  • Sealing ring: TPV
  • Gland body: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
  • O-ring: NBR

Connection & Protection
Connection thread: Metric (EN 60423) / PG (DIN 40430)
Protection class: IP68 - 5 bar

Temperature range
-20 °C +100 °C / -40 °C +150 °C

Properties & Applications
  • High corrosion resistance
  • Smooth surfaces
  • Easy to assemble
  • Suitable for food and pharmaceutical industries and offshore/on‑offshore applications

Technical Data (Metric/PG thread cable glands)
AG Thread | Code | H mm | GL mm | Wrench B mm | Wrench C mm | Clamping Range mm
M 12 x 1,5 | OMSG 01 | 22 | 6 | 14 | 14 | 3 - 6,5
M 16 x 1,5 | OMSG 02 | 23 | 7 | 18 | 17 | 4 - 8
M 20 x 1,5 | OMSG 03RS | 26,5 | 8 | 22 | 22 | 4 - 10
M 20 x 1,5 | OMSG 03 | 26,5 | 8 | 22 | 22 | 6 - 12
M 25 x 1,5 | OMSG 04 | 28 | 8 | 27 | 24 | 10 - 14
M 32 x 1,5 | OMSG 05 | 31,5 | 9 | 36 | 30 | 13 - 18
M 40 x 1,5 | OMSG 06 | 38 | 9 | 46 | 41 | 18 - 25
M 50 x 1,5 | OMSG 07 | 43 | 9 | 55 | 50 | 22 - 32
M 63 x 1,5 | OMSG 08 | 48 | 14 | 70 | 65 | 33 - 44

PG 7 | OPSG 01 | 22 | 6 | 14 | 14 | 3 - 6,5
PG 9 | OPSG 02 | 23 | 6 | 17 | 17 | 4 - 8
PG 11 | OPSG 03 | 24,5 | 6 | 22 | 22 | 5 - 10
PG 13,5 | OPSG 04RS | 26,5 | 6,5 | 22 | 22 | 4 - 10
PG 13,5 | OPSG 04 | 26,5 | 6,5 | 22 | 22 | 6 - 12
PG 16 | OPSG 05 | 28 | 6,5 | 24 | 24 | 10 - 14
PG 21 | OPSG 06 | 31,5 | 7 | 30 | 30 | 13 - 18
PG 29 | OPSG 07 | 38 | 8 | 41 | 41 | 18 - 25
PG 36 | OPSG 08 | 43 | 10 | 50 | 50 | 22 - 32
PG 42 | OPSG 09 | 47 | 12 | 60 | 60 | 30 - 38
PG 48 | OPSG 10 | 48 | 14 | 65 | 65 | 33 - 44

Technical specifications
  • Materials: Stainless steel cap nut and gland body (1.4305/AISI303 - 1.4404/AISI316L)
  • Clamping insert material: Polyamid PA6 V2
  • Sealing ring material: TPV
  • O-ring material: NBR
  • Thread types available: Metric (EN 60423) and PG (DIN 40430)
  • Ingress protection: IP68 (5 bar)
  • Operating temperature ranges: -20 °C to +100 °C and -40 °C to +150 °C
  • Key properties: High corrosion resistance, smooth surfaces, easy assembly
  • Recommended applications: Food industry, pharmaceutical industry, offshore/on-offshore applications
