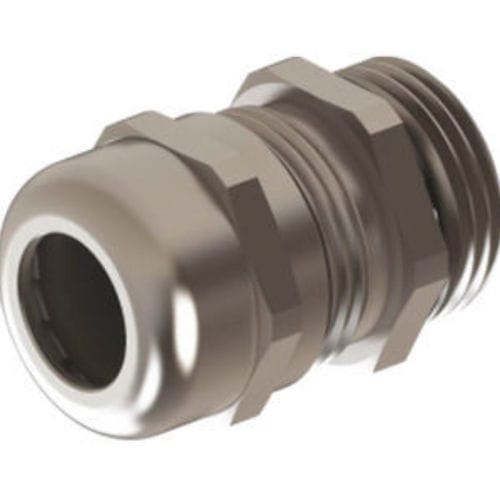

Threaded cable gland ONSG series

stainless steelnitrile butadiene rubber (NBR)PA6

Product name
Metal Cable Glands – NPT Stainless Steel

Materials / Construction
Cap nut: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
Clamping insert: Polyamid PA6 V2
Sealing ring: TPV
Gland body: Stainless steel (1.4305/AISI303 - 1.4404/AISI316L)
O-ring: NBR
Connection thread: NPT ANSI B1.20.1
Protection class: IP68 - 5 bar
Temperature range: -20 °C to +100 °C (standard) / -40 °C to +150 °C (extended)

Key properties

• High corrosion resistance
• Smooth surfaces
• Easy to assemble
• Suitable for food and pharmaceutical industry and on-/offshore applications

Technical Data (dimensions by thread / code)
Header: AG Thread | Code | H (mm) | GL (mm) | Wrench B (mm) | Wrench C (mm) | Clamping Range (mm)
1/4" | ONSG 01 | 22 | 11,5 | 14 | 14 | 3 - 6,5
3/8" | ONSG 02/01 | 22 | 11,5 | 18 | 14 | 3 - 6,5
3/8" | ONSG 02 | 23 | 11,5 | 18 | 17 | 4 - 8
3/8" | ONSG 02/03 | 24,5 | 11,5 | 22 | 22 | 5 - 10
1/2" | ONSG 03RS | 26,5 | 13 | 22 | 22 | 4 - 10
1/2" | ONSG 03 | 26,5 | 13 | 22 | 22 | 6 - 12
1/2" | ONSG 03/05 | 28 | 13 | 24 | 24 | 10 - 14
3/4" | ONSG 04 | 28 | 13 | 27 | 24 | 10 - 14
3/4" | ONSG 04ES | 31,5 | 13 | 30 | 30 | 9 - 17
3/4" | ONSG 04/06 | 31,5 | 13 | 30 | 30 | 13 - 18
1" | ONSG 05RS | 31,5 | 13 | 36 | 30 | 9 - 17
1" | ONSG 05/07 | 38 | 13 | 41 | 41 | 18 - 25
1 1/4" | ONSG 06 | 38 | 15 | 46 | 41 | 18 - 25
1 1/2" | ONSG 07 | 43 | 15 | 50 | 50 | 22 - 32
2" | ONSG 08 | 48 | 15 | 65 | 65 | 33 - 44
2" | ONSG 09 | 48 | 15 | 70 | 75 | 45 - 50
2 1/2" | ONSG 18s | 48 | 20 | 75 | 75 | 45 - 55
2 1/2" | ONSG 18 | 58 | 20 | 90 | 90 | 50 - 63
3" | ONSG 19s | 58 | 20 | 90 | 90 | 50 - 63
3" | ONSG 19 | 61 | 20 | 10 | 100 | 60 - 70

Technical specifications

• Materials: Stainless steel cap nut and gland body (1.4305/AISI303 - 1.4404/AISI316L); PA6 V2 clamping insert; TPV sealing ring; NBR O-ring
• Thread standard: NPT ANSI B1.20.1
• Ingress protection: IP68 up to 5 bar
• Temperature range: -20 °C to +100 °C (standard) and -40 °C to +150 °C (extended)
• Typical applications: Food industry, pharmaceutical industry, offshore and on-/offshore applications
• Available product codes / sizes: ONSG 01, ONSG 02/01, ONSG 02, ONSG 02/03, ONSG 03RS, ONSG 03, ONSG 03/05, ONSG 04, ONSG 04ES, ONSG 04/06, ONSG 05RS, ONSG 05/07, ONSG 06, ONSG 07, ONSG 08, ONSG 09, ONSG 18s, ONSG 18, ONSG 19s, ONSG 19 (see dimension table above for H/GL/wrench/clamping ranges)
