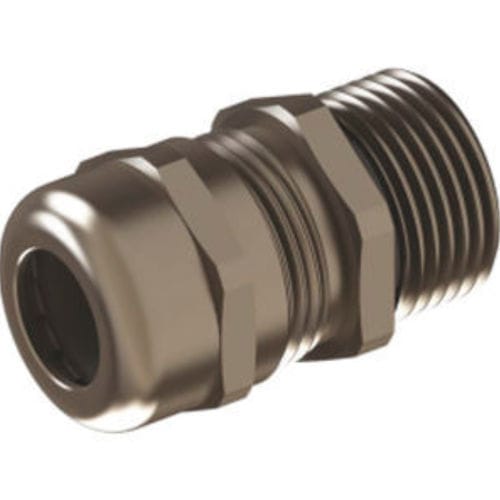

Polyamide cable gland OMBG 01/02

nickel-plated brassIP68strain relief

Product
Reduced/expanded metal cable glands OMBG/OPBG series for metric and PG threads. Nickel-plated brass gland body and cap nut with PA6 V2 clamping insert, TPV sealing ring and NBR O-ring. Designed for IP68 protection and high strain relief.

Product details
Cap nut: Nickel plated brass
Clamping insert: Polyamide PA6 V2
Sealing ring: TPV
Gland body: Nickel plated brass
O-ring: NBR
Connection thread: Metric (EN 60423) / PG (DIN 40430)
Protection class: IP68 - 5 bar
Temperature range: standard -20 °C to +100 °C; extended -40 °C to +150 °C

Properties

• Wide cable clamping range covering multiple codes and sizes
• Easy to assemble with long-thread versions available
• High strain relief suitable for industrial installations
• Reliable sealing for metric and PG thread systems

Technical data (Metric/PG thread cable glands)
AG Thread | Code | H mm. | GL mm. | Wrench B mm. | Wrench C mm. | Clamping Range mm.
M 12 x 1,5 | OMBG 01/02 | 23 | 6 | 17 | 17 | 4 - 8
M 16 x 1,5 | OMBG 02/03 | 24,5 | 7 | 20 | 20 | 5 - 10
M 16 x 1,5 | OMBG 02/04 | 26,5 | 7 | 22 | 22 | 6 - 12
M 20 x 1,5 | OMBG 03/05 | 28 | 8 | 24 | 24 | 10 - 14
M 25 x 1,5 | OMBG 04/04 | 26,5 | 8 | 27 | 22 | 6 - 12
M 25 x 1,5 | OMBG 04ES | 31,5 | 8 | 30 | 30 | 9 - 17
M 25 x 1,5 | OMBG 04/06 | 31,5 | 8 | 30 | 30 | 13 - 18
M 32 x 1,5 | OMBG 05/07 | 38 | 9 | 40 | 40 | 18 - 25
M 40 x 1,5 | OMBG 06/08 | 43 | 9 | 50 | 50 | 22 - 32
M 50 x 1,5 | OMBG 07/09 | 47 | 9 | 60 | 60 | 30 - 38
M 50 x 1,5 | OMBG 07/10 | 48 | 9 | 65 | 65 | 33 - 44

PG 7 | OPBG 01/02 | 23 | 6 | 17 | 17 | 4 - 8
PG 9 | OPBG 02/03 | 24,5 | 6 | 20 | 20 | 5 - 12
PG 9 | OPBG 02/04 | 26,5 | 6 | 22 | 22 | 6 - 12
PG 11 | OPBG 03/04 | 26,5 | 6 | 22 | 22 | 6 - 12
PG 11 | OPBG 03/05 | 28 | 6 | 24 | 24 | 10 - 14
PG 13,5 | OPBG 04/05 | 28 | 6,5 | 24 | 24 | 10 - 14
PG 16 | OPBG 05/06 | 31,5 | 6,5 | 30 | 30 | 13 - 18
PG 21 | OPBG 06RS | 31,5 | 7 | 30 | 30 | 9 - 17
PG 29 | OPBG 07/08 | 43 | 8 | 50 | 50 | 22 - 32
PG 36 | OPBG 08/09 | 47 | 10 | 60 | 57 | 30 - 38
PG 42 | OPBG 09/10 | 48 | 12 | 65 | 64 | 33 - 44

Technical specifications

• Materials: Cap nut and gland body - Nickel plated brass; Clamping insert - Polyamide PA6 V2; Sealing ring - TPV; O-ring - NBR
• Connection threads supported: Metric (EN 60423) and PG (DIN 40430)
• Protection rating: IP68 up to 5 bar
• Operating temperature ranges: standard -20 °C to +100 °C; extended -40 °C to +150 °C
• Design features: wide clamping range, long thread version, high strain relief, easy assembly
• Available sizes/codes with respective clamping ranges and wrench sizes as listed above
