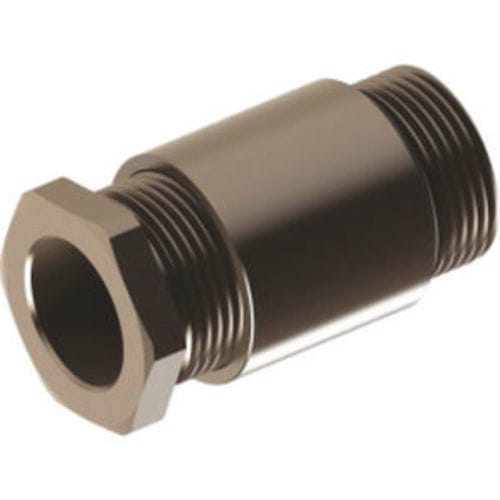

Nickel-plated brass cable gland MACG series

nitrile butadiene rubber (NBR)corrosion-resistantarmored

Overview
Metal cable glands designed for armoured cables. Components and materials are selected for marine, offshore and wind-power installations. Available in metric thread (EN60423) with wide clamping ranges to suit multiple armoured cable constructions.

Materials and Components
Cap nut: nickel-plated brass
Ring: nickel-plated brass
Compression part: nickel-plated brass
Gland body: nickel-plated brass
O-ring: NBR
Connection thread: Metric (EN60423)
Protection class: IP54
Temperature range: -20 °C to +100 °C (standard) / -40 °C to +150 °C (extended)
Properties: Ship building, Offshore, Wind power plant, For armoured cables, Wide cable range

Technical data (Metric thread cable glands)

• AG Thread | Code | GL mm | Ø mm | Wrench mm | Clamping Range mm
• M 16 x 1,5 | MACG16A | 9 | 20 | 20 | 10.5
• M 18 x 1,5 | MACG18A | 10 | 22 | 22 | 11.5
• M 18 x 1,5 | MACG18B | 10 | 22 | 22 | 11.5 - 12.5
• M 24 x 1,5 | MACG24A | 11 | 28 | 27 | 11.5
• M 24 x 1,5 | MACG24B | 11 | 28 | 27 | 11.5 - 13.5
• M 24 x 1,5 | MACG24C | 11 | 28 | 27 | 13.5 - 16.5
• M 30 x 2,0 | MACG30A | 12 | 35 | 32 | 16.5 - 18
• M 30 x 2,0 | MACG30B | 12 | 35 | 32 | 18 - 19.5
• M 30 x 2,0 | MACG30C | 12 | 35 | 32 | 19.5 - 20.5
• M 36 x 2,0 | MACG36A | 13 | 40 | 40 | 20.5 - 22.5
• M 36 x 2,0 | MACG36B | 13 | 40 | 40 | 22.5 - 25.5
• M 45 x 2,0 | MACG45B | 14 | 50 | 50 | 27.5 - 31.5
• M 56 x 2,0 | MACG56A | 15 | 62 | 60 | 31.5 - 34
• M 56 x 2,0 | MACG56B | 15 | 62 | 60 | 34 - 37.5
• M 56 x 2,0 | MACG56C | 15 | 62 | 60 | 37.5 - 41
• M 72 x 2,0 | MACG72A | 16 | 78 | 75 | 41 - 46
• M 72 x 2,0 | MACG72B | 16 | 78 | 75 | 46 - 50.5

Technical characteristics / specifications

• Brand: Ortac
• Product type: Metal cable glands for armoured cables (MACG series)
• Materials: Cap nut, ring, compression part and gland body - nickel-plated brass; O-ring - NBR
• Connection thread: Metric (EN60423)
• Protection class: IP54
• Temperature range: -20 °C to +100 °C (standard) and -40 °C to +150 °C (extended)
• Applications: Ship building, Offshore, Wind power plants, For armoured cables
• Available sizes / codes: MACG16A, MACG18A, MACG18B, MACG24A, MACG24B, MACG24C, MACG30A, MACG30B, MACG30C, MACG36A, MACG36B, MACG45B, MACG56A, MACG56B, MACG56C, MACG72A, MACG72B
• Dimensions and clamping ranges: see technical data list (AG Thread | GL mm | Ø mm | Wrench mm | Clamping Range mm)
