Brass cable gland WUG series

nickel-plated brassaluminiumstainless steel

Overview

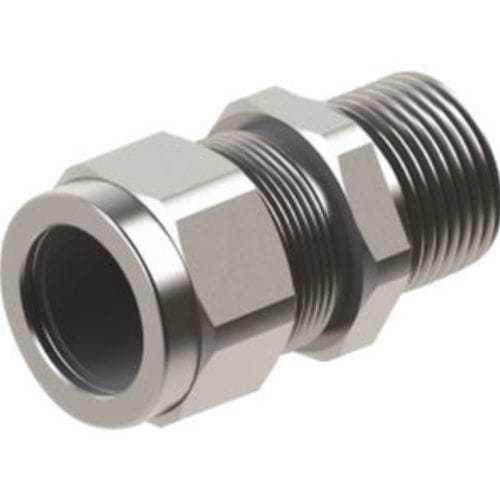

Industrial unarmoured single-compression cable glands WUG Series designed for use with SWA and similar cables; suitable for hazardous area standards and heavy-duty industrial installations.

Product details
Type: WUG (single compression gland)
Certificates: PT, CE, RoHS, ISO9001, ISO14001, ISO45001
Material: MS58 brass (with or without nickel plating); Stainless steel AISI303; Stainless steel AISI316L; Aluminium
Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-31:2009
Ingress protection: IP66 / IP68
Temperature ranges by seal material: NBR -30 °C to +120 °C; Neoprene -40 °C to +100 °C; Silicone -60 °C to +180 °C; TPE/V -30 °C to +100 °C
Cable compatibility: SWA (single wire armour); STA and other cable types optional

Technical Data (product dimensions and codes)
Header: Product Size | Product Code | Standard AG | AG NPT | AG | B Min - Max | GL min. mm | C mm / B
16 | WUGXX/16/X | M16x1,5 | 1/2" | PG9 | 6,1 - 11,6 | GL min. 15,0 | C 20 | 24
20s | WUGXX/20s/X | M20sx1,5 | 1/2" | PG11ss | 6,1 - 13,2 | GL min. 15,0 | C 24 | 24
20 | WUGXX/20/X | M20x1,5 | 1/2" | PG11s | 9,5 - 15,9 | GL min. 15 | C 24 | 24
25 | WUGXX/25/X | M25x1,5 | 3/4" | PG13,5 | 12,5 - 20,5 | GL min. 15 | C 30 | 30
32 | WUGXX/32/X | M32x1,5 | 1" | PG21s | 18,2 - 26,2 | GL min. 15 | C 38 | 38
40 | WUGXX/40/X | M40x1,5 | 1 1/4" | PG21 | 23,7 - 33,9 | GL min. 15 | C 45 | 45
50 | WUGXX/50/X | M50x1,5 | 1 1/2" | PG29 | 27,9 - 40,4 | GL min. 15 | C 55 | 55
63s | WUGXX/63s/X | M63sx1,5 | 2" | PG36s | 40,4 - 51 | GL min. 15 | C 70 | 70
63 | WUGXX/63/X | M63x1,5 | 2 1/2" | PG36 | 47,2 - 55,9 | GL min. 15 | C 70 | 80
75s | WUGXX/75s/X | M75sx1,5 | 2 1/2" | PG42 | 52,8 - 59 | GL min. 15 | C 80 | 80
75 | WUGXX/75/X | M75x1,5 | 3" | PG48 | 59,1 - 67,9 | GL min. 15 | C 90 | 90

Characteristics / technical specifications

• Series / Model: WUG Series (single compression gland)
• Certificates: PT, CE, RoHS, ISO9001, ISO14001, ISO45001
• Materials available: Brass (MS58) with/without nickel plating; Stainless Steel AISI303; Stainless Steel AISI316L; Aluminium
• Compliance standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-31:2009
• Ingress protection: IP66 / IP68
• Temperature ranges by seal material: NBR -30 °C to +120 °C; Neoprene -40 °C to +100 °C; Silicone -60 °C to +180 °C; TPE/V -30 °C to +100 °C
• Cable compatibility: SWA (Single wire armour); STA and other cable types optional
• Available product sizes and codes: see Technical Data section above
