Sealant cable gland BGS series
nickel-plated brassstainless steelwaterproof

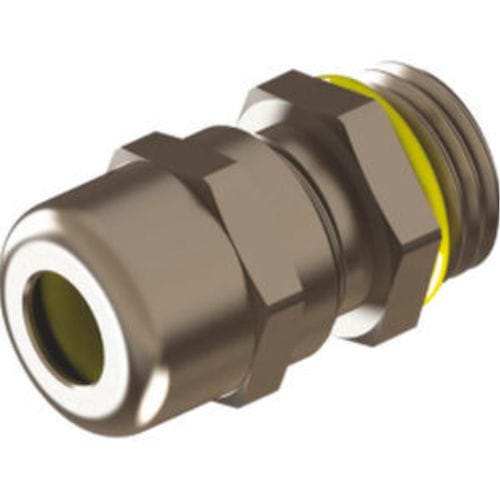

Sealant cable gland - BGS series - ORTAC - nickel-plated brass / stainless steel / waterproof
Sealant cable gland - BGS series - ORTAC - nickel-plated brass / stainless steel / waterproof
Sealant cable gland - BGS series - ORTAC - nickel-plated brass / stainless steel / waterproof - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass, stainless steel
Protection level
waterproof, IP68
Other characteristics
threaded, PG thread, metric, high-temperature, for extreme conditions, sealant
Cable diameter

Max.: 44 mm
(1.73 in)

Min.: 3 mm
(0.12 in)

Thread diameter

Max.: 63 mm
(2.48 in)

Min.: 12 mm
(0.47 in)

Clamping range

Max.: 44 mm
(1.7 in)

Min.: 3 mm
(0.1 in)

Operating temperature

Max.: 180 °C
(356 °F)

Min.: -60 °C
(-76 °F)

Description

Product overview
Metal cable glands, standard type with silicone seal for secure cable entry and sealing. Designed for wide temperature range and IP68 (5 bar) protection. Connection threads available in Metric (EN60423) and PG (DIN 40430).

Construction / Materials
  • Cap nut: Nickel plated brass
  • Sealing ring: Silicone
  • Gland body: Nickel plated brass
  • O-ring: Silicone

Performance
Protection class: IP68 – 5 bar
Temperature range: -60 °C to +180 °C
Properties: High and low temperature resistance; smooth surface; easy to assemble; stainless steel version available.

Technical data (selection)
AG Thread : Code | H mm | GL mm | Wrench B mm | Wrench C mm | Clamping Range mm
M 12 x 1,5 : MBGS 01 | 22 | 6 | 14 | 14 | 3 - 6,5
M 16 x 1,5 : MBGS 02 | 23 | 7 | 18 | 17 | 4 - 8
M 20 x 1,5 : MBGS 03 | 26,5 | 8 | 22 | 22 | 6 - 12
M 25 x 1,5 : MBGS 04 | 28 | 8 | 27 | 24 | 10 - 14
M 32 x 1,5 : MBGS 05 | 31,5 | 9 | 34 | 30 | 13 - 18
M 40 x 1,5 : MBGS 06 | 38 | 9 | 43 | 40 | 18 - 25
M 50 x 1,5 : MBGS 07 | 43 | 9 | 55 | 50 | 22 - 32
M 63 x 1,5 : MBGS 08 | 48 | 14 | 68 | 64 | 34 - 44

PG Thread (selection)
PG 7 : PBGS 01 | 22 | 6 | 14 | 3 - 6,5
PG 9 : PBGS 02 | 23 | 6 | 17 | 4 - 8
PG 11 : PBGS 03 | 24,5 | 6 | 20 | 5 - 10
PG 13,5 : PBGS 04 | 26,5 | 6,5 | 22 | 6 - 12
PG 16 : PBGS 05 | 28 | 6,5 | 24 | 10 - 14
PG 21 : PBGS 06 | 31,5 | 7 | 30 | 13 - 18
PG 29 : PBGS 07 | 38 | 8 | 40 | 18 - 25
PG 36 : PBGS 08 | 43 | 10 | 50 | 22 - 32
PG 42 : PBGS 09 | 47 | 12 | 57 | 30 - 38
PG 48 : PBGS 10 | 48 | 14 | 64 | 34 - 44

Included / available items
  • Standard metal cable gland (silicone seal)
  • Sealing ring and O-ring (silicone)
  • Cap nut and gland body (nickel plated brass); stainless steel version available

Features / technical specifications
  • Cap nut: Nickel plated brass
  • Sealing ring: Silicone
  • Gland body: Nickel plated brass
  • O-ring: Silicone
  • Connection thread: Metric (EN60423) / PG (DIN 40430)
  • Protection class: IP68 – 5 bar
  • Temperature range: -60 °C to +180 °C
  • High and low temperature resistance
  • Stainless steel version available
  • Smooth surface
  • Easy to assemble
