Nickel-plated brass cable gland OPBG 02A3
IP65halogen-freethreaded

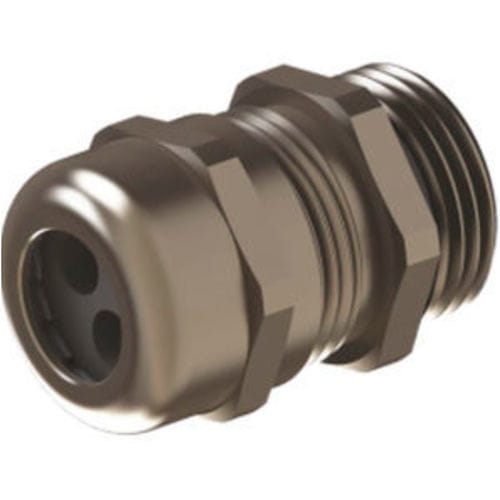

Nickel-plated brass cable gland - OPBG 02A3 - ORTAC - IP65 / halogen-free / threaded
Nickel-plated brass cable gland - OPBG 02A3 - ORTAC - IP65 / halogen-free / threaded
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass
Protection level
IP65, halogen-free
Other characteristics
threaded, multi-passage, for flat cables
Operating temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

Product Overview
Metal cable glands OPBG and YPBG series for multi-core and flat cables. Nickel-plated brass body and cap nut, sealing system providing IP65 protection, suitable for industrial electrical enclosures and junction boxes. Designed for straightforward assembly and reliable cable retention in applications using PG (DIN40430) threads.

Components and Materials
  • Cap nut: Nickel plated brass
  • Clamping insert: Polyamide PA6 V2
  • Sealing ring: TPV
  • Gland body: Nickel plated brass
  • O-ring: NBR
  • Connection thread: PG (DIN40430)
  • Protection class: IP65
  • Temperature range: -20 °C to +100 °C; -40 °C to +150 °C


Technical Data (PG Thread Cable Glands)
  • PG 9 | OPBG 02A3 | 2 holes | C 3 mm
  • PG 9 | OPBG 02B3 | 3 holes | C 3 mm
  • PG 9 | OPBG 02C3 | 4 holes | C 3 mm
  • PG 11 | OPBG 03A4 | 2 holes | C 4 mm
  • PG 11 | OPBG 03A5 | 2 holes | C 5 mm
  • PG 11 | OPBG 03B4 | 3 holes | C 4 mm
  • PG 11 | OPBG 03B5 | 3 holes | C 5 mm
  • PG 13,5 | OPBG 04A5 | 2 holes | C 5 mm
  • PG 13,5 | OPBG 04A6 | 2 holes | C 6 mm
  • PG 13,5 | OPBG 04B4 | 3 holes | C 4 mm
  • PG 13,5 | OPBG 04B5 | 3 holes | C 5 mm
  • PG 16 | OPBG 05A4 | 2 holes | C 4 mm
  • PG 16 | OPBG 05A7 | 2 holes | C 7 mm
  • PG 16 | OPBG 05B4 | 3 holes | C 7 mm
  • PG 16 | OPBG 05B6 | 3 holes | C 6 mm
  • PG 16 | OPBG 05C5 | 4 holes | C 5 mm
  • PG 21 | OPBG 06A8 | 2 holes | C 8 mm
  • PG 21 | OPBG 06B7 | 3 holes | C 7 mm
  • PG 21 | OPBG 06B8 | 3 holes | C 8 mm
  • PG 21 | OPBG 06C7 | 4 holes | C 7 mm
  • PG 21 | OPBG 06G3 | 8 holes | C 3 mm
  • PG 21 | OPBG 06G4 | 8 holes | C 4 mm
  • PG 21 | OPBG 06A5 | 2 holes | C 5 mm
  • PG 21 | OPBG 06D6 | 5 holes | C 6 mm
  • PG 21 | OPBG 06F4 | 9 holes | C 4 mm
  • PG 29 | OPBG 07C9 | 4 holes | C 9 mm
  • PG 29 | OPBG 07O3 | 16 holes | C 3 mm
  • PG 36 | OPBG 08E8 | 6 holes | C 8 mm


Technical Data (Flathole PG Cable Glands)
  • PG 16 | YPBG 05 | 7 holes | C 13 mm
  • PG 21 | YPBG 06 | 5 holes | C 17 mm
  • PG 29 | YPBG 07 | 8 holes | C 22 mm
  • PG 36 | YPBG 08 | 10 holes | C 28 mm
  • PG 36 | YPBG 09 | 5.5 holes | C 28 mm
  • PG 42 | YPBG 10 | 12 holes | C 33 mm


Technical specifications
  • Cap nut: Nickel plated brass
  • Clamping insert: Polyamide PA6 V2
  • Sealing ring: TPV
  • Gland body: Nickel plated brass
  • O-ring: NBR
  • Connection thread: PG (DIN40430)
  • Protection class: IP65
  • Temperature range: -20 °C to +100 °C; -40 °C to +150 °C
  • Suitable for multi-core and flat cables
  • Easy to assemble for industrial installations
