Brass cable gland E1W Series

IP66IP67metric

Overview

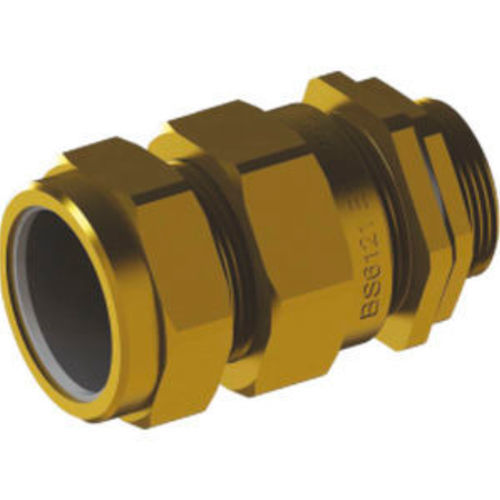

Industrial E1W double-compression armoured cable glands designed for secure cable entry and armour termination in indoor and outdoor installations. Constructed in brass with optional nickel plating and manufactured to BS 6121 for use with SWA cables. Rated IP66 and IP67; operating temperature -20 °C to +80 °C. Thread options: Metric, NPT, BSP & PG.

Function
E1W glands provide three key functions: sealing of the inner sheath, sealing of the outer sheath and an armour-specific clamp that ensures mechanical retention and establishes an electrical bond between the cable armour and the gland body.

Accessories

• Available accessories: PVC shrouds, locknuts and earth tag to complete installation and earthing requirements

Technical Data
Product Size; Product Code; Standard AG; AG NPT; A Min - A Max; B Min - B Max; GL mm
20s; E1W-M20s; M20 x 1,5; 1/2"; A: 8,8 - 11,7; B: 11,8 - 16; GL: 15
20L; E1W-M20L; M20 x 1,5; 1/2"; A: 11,4 - 14; B: 14 - 20,8; GL: 15
25s; E1W-M25s; M25 x 1,5; 3/4"; A: 13 - 16; B: 18 - 24; GL: 15
25L; E1W-M25L; M25 x 1,5; 3/4"; A: 17,3 - 20; B: 20,3 - 27,4; GL: 15
32s; E1W-M32s; M32 x 1,5; 1"; A: 20 - 23; B: 24,5 - 31; GL: 15
32L; E1W-M32L; M32 x 1,5; 1"; A: 24,2 - 26,3; B: 26,5 - 33,5; GL: 15
40s; E1W-M40s; M40 x 1,5; 1 1/4"; A: 26 - 29; B: 30,4 - 36; GL: 15
40L; E1W-M40L; M40 x 1,5; 1 1/4"; A: 29,5 - 32,1; B: 33,2 - 40; GL: 15
50s; E1W-M50s; M50 x 1,5; 1 1/2"; A: 33 - 38,1; B: 40 - 46,5; GL: 15
50L; E1W-M50L; M50 x 1,5; 2"; A: 38 - 44; B: 44 - 52,6; GL: 20
63s; E1W-M63s; M63 x 1,5; 2"; A: 44 - 50,5; B: 50 - 59; GL: 20
63L; E1W-M63L; M63 x 1,5; 2 1/2"; A: 50 - 56; B: 56 - 66; GL: 20
75s; E1W-M75s; M75 x 1,5; 2 1/2"; A: 56 - 62; B: 63,5 - 71; GL: 20
75L; E1W-M75L; M75 x 1,5; 3"; A: 62 - 68,5; B: 69 - 78; GL: 20
90L; E1W-M90L; M90 x 2; 3"; A: 65 - 80; B: 84 - 96; GL: 20
100; E1W-M100; M100 x 2; 3 1/2"; A: 82 - 90; B: 84 - 102; GL: 20

Notes
All dimensions in the Technical Data table are provided by the manufacturer. Consult technical drawings and datasheets for exact part numbering and detailed dimensional drawings (documents available separately).

Technical specifications

• Type: E1W (Double compression gland)
• Material: Brass with or without nickel plating
• Standards: BS 6121
• Protection class: IP66 & IP67
• Temperature range: -20 °C to +80 °C
• Thread options: Metric, NPT, BSP & PG
• Application: Indoor/outdoor use with all types of SWA cables
• Function: Inner sheath seal, outer sheath seal and armour-specific clamp providing electrical bond
