Metal cable gland OPBG 01
nitrile butadiene rubber (NBR)PA6IP68

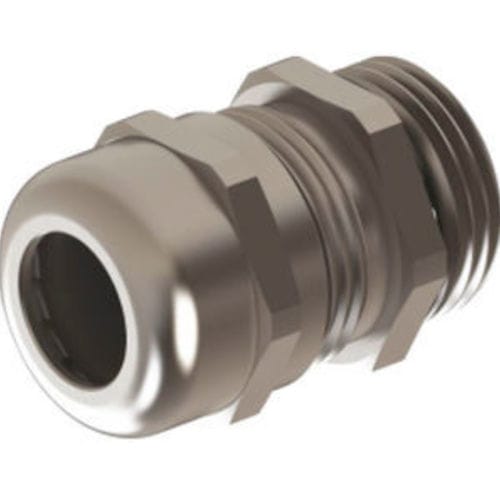

Metal cable gland - OPBG 01 - ORTAC - nitrile butadiene rubber (NBR) / PA6 / IP68
Metal cable gland - OPBG 01 - ORTAC - nitrile butadiene rubber (NBR) / PA6 / IP68
Metal cable gland - OPBG 01 - ORTAC - nitrile butadiene rubber (NBR) / PA6 / IP68 - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
PA6, nitrile butadiene rubber (NBR), metal
Protection level
IP68
Other characteristics
PG thread, metric, strain relief, threaded
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 44 mm
(1.73 in)

Clamping range

Min.: 3 mm
(0.1 in)

Max.: 44 mm
(1.7 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 100 °C
(212 °F)

Description

Product overview
  • PG thread metal cable glands (standard type, metric)


Materials
  • Cap nut: Nickel Plated Brass
  • Clamping insert: Polyamide PA6 V2
  • Sealing ring: TPV
  • Gland body: Nickel Plated Brass
  • O-ring: NBR


Standards & Connection
  • Connection thread: PG (DIN 40430)
  • Protection class: IP68 - 5 bar


Temperature
  • Temperature range: -20 °C to +100 °C; -40 °C to +150 °C (on request)


Properties
  • Easy to assemble
  • Available in long thread versions
  • High strain relief


Technical Data - Standard thread
AG Thread | Code | H mm | GL mm | Wrench mm | Clamping Range mm
PG 7 | OPBG 01 | 22 | 6 | 14 | 3 - 6,5
PG 9 | OPBG 02 | 23 | 6 | 17 | 4 - 8
PG 11 | OPBG 03 | 24,5 | 6 | 20 | 5 - 10
PG 13,5 | OPBG 04RS | 26,5 | 6,5 | 22 | 4 - 10
PG 13,5 | OPBG 04 | 26,5 | 6,5 | 22 | 6 - 12
PG 16 | OPBG 05 | 28 | 6,5 | 24 | 10 - 14
PG 21 | OPBG 06 | 31,5 | 7 | 30 | 13 - 18
PG 29 | OPBG 07 | 38 | 8 | 40 | 18 - 25
PG 36 | OPBG 08 | 43 | 10 | 50 | 22 - 32
PG 42 | OPBG 09 | 47 | 12 | 57 | 30 - 38
PG 48 | OPBG 10 | 48 | 14 | 64 | 33 - 44

Technical Data - Long thread
AG Thread | Code | H mm | GL mm | Wrench mm | Clamping Range mm
PG 7 | OPBG 11 | 22 | 10 | 14 | 3 - 6,5
PG 9 | OPBG 12 | 23 | 10 | 17 | 4 - 8
PG 11 | OPBG 13 | 24,5 | 10 | 20 | 5 - 10
PG 13,5 | OPBG 14RS | 26,5 | 10 | 22 | 4 - 10
PG 13,5 | OPBG 14 | 26,5 | 10 | 22 | 6 - 12
PG 16 | OPBG 15 | 28 | 10 | 24 | 10 - 14
PG 21 | OPBG 16 | 31,5 | 12 | 30 | 13 - 18
PG 29 | OPBG 17 | 38 | 12 | 40 | 18 - 25
PG 36 | OPBG 18 | 43 | 14 | 50 | 22 - 32
PG 42 | OPBG 19 | 47 | 18 | 60 | 30 - 38
PG 48 | OPBG 20 | 48 | 18 | 65 | 33 - 44

Technical specifications
  • Cap nut: Nickel Plated Brass
  • Clamping insert: Polyamide PA6 V2
  • Sealing ring: TPV
  • Gland body: Nickel Plated Brass
  • O-ring: NBR
  • Connection thread standard: PG (DIN 40430)
  • Protection class: IP68 - 5 bar
  • Temperature range: -20 °C to +100 °C (standard); -40 °C to +150 °C (on request)
  • Available versions: standard and long thread
  • Key properties: easy to assemble, long thread versions, high strain relief
