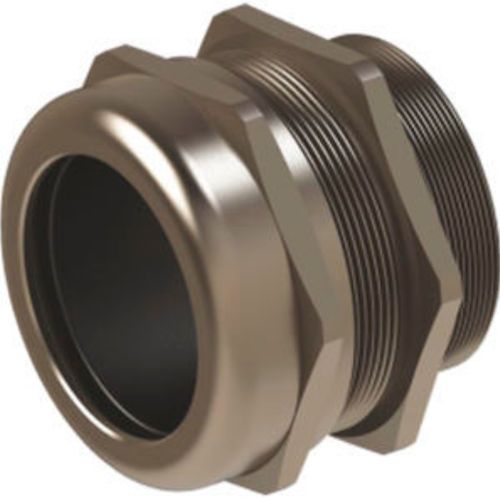

Nickel-plated brass cable gland OMBG 17

impact-resistantIP68metric

Description
Metal cable glands OMBG/ONBG series for secure cable entry in industrial enclosures and equipment. Cap nut and gland body are nickel-plated brass; sealing ring made of EPDM–TPV. Available with metric thread (EN60423) and NPT options. Rated IP68 and suitable for wide cable ranges including XL cables. Operating temperature ranges: -20 °C to +100 °C and -40 °C to +150 °C depending on seal option.

Properties

• High impact and temperature resistance
• Easy and quick assembly
• Wide cable compatibility, including XL cables
• Available in multiple metric and NPT sizes

Technical Data

• M 63 x 1,5 | OMBG 17 | H 48 mm | GL 15 mm | Wrench B 70 mm | Wrench C 75 mm | Clamping range 45 - 55 mm
• M 75 x 1,5 | OMBG 18s | H 48 mm | GL 20 mm | Wrench B 85 mm | Wrench C 75 mm | Clamping range 45 - 55 mm
• M 75 x 1,5 | OMBG 18 | H 58 mm | GL 20 mm | Wrench B 90 mm | Wrench C 90 mm | Clamping range 50 - 63 mm
• M 80 x 2,0 | OMBG 1880 | H 58 mm | GL 20 mm | Wrench B 90 mm | Wrench C 90 mm | Clamping range 50 - 63 mm
• M 90 x 2,0 | OMBG 19 | H 61 mm | GL 20 mm | Wrench B 100 mm | Wrench C 100 mm | Clamping range 60 - 70 mm
• N 2 ½” | ONBG 18s | H 48 mm | GL 20 mm | Wrench B 85 mm | Wrench C 75 mm | Clamping range 45 - 55 mm
• N 2 ½” | ONBG 18 | H 58 mm | GL 20 mm | Wrench B 90 mm | Wrench C 90 mm | Clamping range 50 - 63 mm
• N 3” | ONBG 19 | H 61 mm | GL 20 mm | Wrench B 100 mm | Wrench C 100 mm | Clamping range 60 - 70 mm

Specifications

• Cap nut: Nickel-plated brass
• Sealing ring: EPDM – TPV
• Gland body: Nickel-plated brass
• Connection thread: Metric (EN60423) and NPT options
• Protection class: IP68
• Temperature range: -20 °C to +100 °C; -40 °C to +150 °C (depending on seal)
• Assembly: Easy to assemble
• Cable compatibility: Wide cable range including XL cables
• Available sizes and codes as listed in Technical Data
