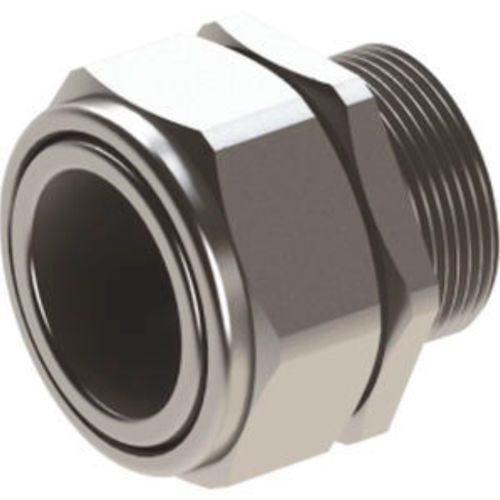

Industrial Type Armoured Cable Glands - AG Series

Overview
Standards: EN 60079-0 / EN 60079-1 / EN 60079-31
Certificates: GOST, CE, RoHS, ISO 9001, ISO 14001, ISO 45001
Ingress protection: IP55
Materials: MS58 (brass grade) and Stainless Steel
Thread norms supported: EN 60423 / DIN 40430 / ASME B 1.20.1 / DIN 259

Technical Data (sizes and codes)
Product Size | Product Code | Standard AG | AG NPT | B Min | B Max | GL | mm
16 | AGXX/16/X | M16x1,5 | 3/8" | 7 | 11 | 10,0 | 22
20s | AGXX/20s/X | M20sx1,5 | 1/2" | 11 | 16 | 10,0 | 24
20 | AGXX/20/X | M20x1,5 | 1/2" | 13 | 21 | 11 | 30
25 | AGXX/25/X | M25x1,5 | 3/4" | 19 | 27 | 11 | 36
32 | AGXX/32/X | M32x1,5 | 1" | 26 | 34 | 14 | 42
40 | AGXX/40/X | M40x1,5 | 1 1/4" | 32 | 40 | 14 | 50
50s | AGXX/50s/X | M50sx1,5 | 1 1/2" | 38 | 45 | 15 | 55
50 | AGXX/50/X | M50x1,5 | 2" | 43 | 52 | 15 | 60
63s | AGXX/63s/X | M63sx1,5 | 2" | 50 | 62 | 15 | 70
63 | AGXX/63/X | M63x1,5 | 2 1/2" | 56 | 68 | 15 | 80
75s | AGXX/75s/X | M75sx1,5 | 2 1/2" | 62 | 72 | 15 | 95
75 | AGXX/75/X | M75x1,5 | 3" | 68 | 78 | 15 | 100

Features / Technical specifications

• Series: AG Series (Industrial Type Armoured Cable Glands)
• Applicable standards: EN 60079-0, EN 60079-1, EN 60079-31
• Certificates: GOST, CE, RoHS, ISO 9001, ISO 14001, ISO 45001
• Ingress protection rating: IP55
• Materials: MS58 (brass) and Stainless Steel
• Supported thread standards: EN 60423, DIN 40430, ASME B 1.20.1, DIN 259
• Product code examples: AGXX/16/X, AGXX/20/X, AGXX/25/X, AGXX/32/X, AGXX/40/X, AGXX/50/X, AGXX/63/X, AGXX/75/X (including 's' variants)
• NPT equivalents listed alongside metric threads
• Dimensional ranges provided for each size (B min, B max, GL in mm)
