PA6 cable gland OMBGL
nickel-plated brassnitrile butadiene rubber (NBR)IP68

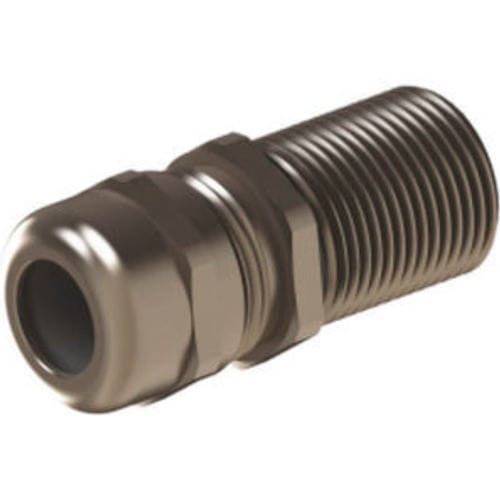

PA6 cable gland - OMBGL - ORTAC - nickel-plated brass / nitrile butadiene rubber (NBR) / IP68
PA6 cable gland - OMBGL - ORTAC - nickel-plated brass / nitrile butadiene rubber (NBR) / IP68
PA6 cable gland - OMBGL - ORTAC - nickel-plated brass / nitrile butadiene rubber (NBR) / IP68 - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
PA6, nickel-plated brass, nitrile butadiene rubber (NBR)
Protection level
IP68
Other characteristics
high-temperature, metric, PG thread, strain relief, threaded
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 25 mm
(0.98 in)

Thread diameter

Min.: 12 mm
(0.47 in)

Max.: 40 mm
(1.57 in)

Clamping range

Min.: 3 mm
(0.1 in)

Max.: 25 mm
(1 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Description

Product name
Metal Cable Glands – Standard Type Long Thread (OMBGL/OPBGL series)

Materials
  • Cap nut: Nickel Plated Brass
  • Clamping insert: Polyamid PA6 V2
  • Sealing ring: TPV
  • Gland body: Nickel Plated Brass
  • O-ring: NBR


General characteristics
  • Connection thread: Metric (EN 60423) / PG (DIN 40430)
  • Protection class: IP68 - 5 bar
  • Temperature range: -20 °C +100 °C / -40 °C +150 °C
  • Properties: Easy to assemble; High strain relief


Technical data (Metric/PG special long thread cable glands)
  • AG Thread | Code | H mm | GL mm | Wrench B mm | Wrench C mm | Clamping Range mm
  • M 12 x 1,5 | OMBGL 01 | 22 | 25 | 14 | 14 | 3 - 6,5
  • M 16 x 1,5 | OMBGL 02 | 23 | 25 | 18 | 17 | 4 - 8
  • M 20 x 1,5 | OMBGL 03 | 26,5 | 25 | 22 | 22 | 6 - 12
  • M 25 x 1,5 | OMBGL 04 | 28 | 25 | 27 | 24 | 10 - 14
  • M 32 x 1,5 | OMBGL 05 | 31,5 | 25 | 34 | 30 | 13 - 18
  • M 40 x 1,5 | OMBGL 06 | 38 | 25 | 43 | 40 | 18 - 25
  • PG | Code | H mm | GL mm | Wrench B/C mm | Clamping Range mm
  • PG 7 | OPBGL 01 | 22 | 25 | 14 | 3 - 6,5
  • PG 9 | OPBGL 02 | 23 | 25 | 17 | 4 - 8
  • PG 11 | OPBGL 03 | 24,5 | 25 | 20 | 5 - 10
  • PG 13,5 | OPBGL 04 | 26,5 | 25 | 22 | 6 - 12
  • PG 16 | OPBGL 05 | 28 | 25 | 24 | 10 - 14
  • PG 21 | OPBGL 06 | 31,5 | 25 | 30 | 13 - 18
  • PG 29 | OPBGL 07 | 38 | 25 | 40 | 18 - 25


Notes
  • Available in metric and PG threads. Technical drawings and certificates available on the product sheet.
