Nickel-plated brass cable gland OK series
IP55PG threadmetric

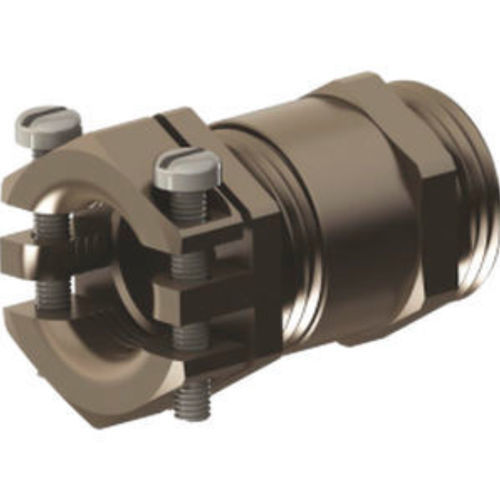

Nickel-plated brass cable gland - OK series - ORTAC - IP55 / PG thread / metric
Nickel-plated brass cable gland - OK series - ORTAC - IP55 / PG thread / metric
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass
Protection level
IP55
Other characteristics
PG thread, metric, strain relief, high-temperature
Cable diameter

Min.: 3.5 mm
(0.14 in)

Max.: 62 mm
(2.44 in)

Thread diameter

Min.: 12 mm
(0.47 in)

Max.: 70 mm
(2.76 in)

Clamping range

Min.: 3.5 mm
(0.1 in)

Max.: 62 mm
(2.4 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Description

Product Name
Metal Cable Glands – With Traction Relief Brass (OKMRN / OKPRN series)

Materials and Basic Construction
Cap nut : Nickel Plated Brass
Sealing ring : TPV
Gland body : Nickel Plated Brass
O-ring : NBR
Connection thread : Metric (EN60423) / PG (DIN 40430)
Protection class : IP55
Temperature range : -20 °C to +100 °C (standard) / -40 °C to +150 °C (extended)

Properties and Applications
High strain relief
High mechanical stability
Recommended application areas: Building sites, Plant engineering, Electric motor manufacturing

Technical Data (Metric / PG thread cable glands)
Metric Thread | Code | H mm | GL mm | Wrench mm | Clamping Range mm
M 12 x 1,5 | OKMRN 01 | 22 | 5 | 14 | 3,5 - 6
M 16 x 1,5 | OKMRN 02 | 25 | 5 | 18 | 4,5 - 7
M 20 x 1,5 | OKMRN 03 | 26,5 | 6 | 22 | 9 - 12
M 25 x 1,5 | OKMRN 04 | 32 | 7 | 27 | 11 - 14
M 32 x 1,5 | OKMRN 05 | 35 | 8 | 34 | 14 - 18
M 40 x 1,5 | OKMRN 06 | 41 | 8 | 45 | 18 - 25
M 50 x 1,5 | OKMRN 07 | 44 | 9 | 55 | 25 - 32
M 63 x 1,5 | OKMRN 08 | 59 | 15 | 70 | 38 - 44
M 63 x 1,5 | OKMRN 09 | 59 | 15 | 70 | 40 - 49

PG Thread | Code | H mm | GL mm | Wrench mm | Clamping Range mm
PG 7 | OKPRN 01 | 22 | 5 | 14 | 3,5 - 6
PG 9 | OKPRN 02 | 25 | 6 | 17 | 4,5 - 7
PG 11 | OKPRN 03 | 26 | 6 | 20 | 6 - 9
PG 13,5 | OKPRN 04 | 26,5 | 6,5 | 22 | 9 - 12
PG 16 | OKPRN 05 | 28 | 6,5 | 24 | 11 - 14
PG 21 | OKPRN 06 | 32 | 7 | 30 | 14 - 18
PG 29 | OKPRN 07 | 35 | 8 | 40 | 18 - 25
PG 36 | OKPRN 08 | 41 | 8 | 50 | 25 - 32
PG 42 | OKPRN 09 | 44 | 9 | 60 | 30 - 38
PG 48 | OKPRN 10 | 59 | 15 | 70 | 38 - 44
PG 48 | OKPRN 11 | 59 | 15 | 70 | 40 - 49
∅55 | OKPRN ∅55 | 59 | 15 | 70 | 40 - 49
∅60 | OKPRN ∅60 | 59 | 16 | 75 | 47 - 54
∅70 | OKPRN ∅70 | 66 | 20 | 90 | 53 - 62

Features / Technical specifications
  • Cap nut material: Nickel plated brass
  • Gland body material: Nickel plated brass
  • Sealing ring material: TPV
  • O-ring material: NBR
  • Connection threads available: Metric (EN60423) and PG (DIN 40430)
  • Ingress protection: IP55
  • Temperature rating: -20 °C to +100 °C (standard) and -40 °C to +150 °C (extended)
  • Features: High strain relief and high mechanical stability
  • Available sizes/codes: Metric (OKMRN 01–09) and PG (OKPRN 01–11) with detailed H, GL, wrench and clamping ranges as listed above
