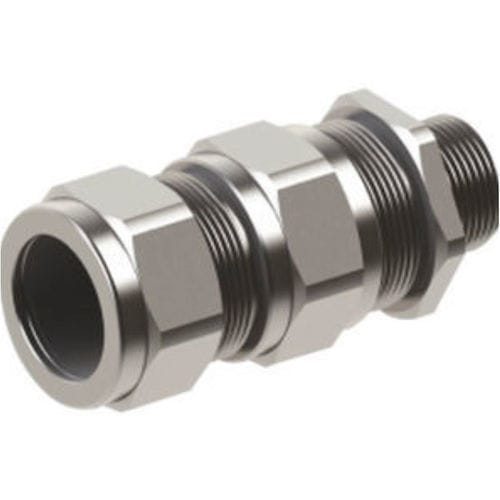

Brass cable gland WDCG series
nickel-plated brassaluminiumstainless steel

Brass cable gland - WDCG series - ORTAC - nickel-plated brass / aluminium / stainless steel
Brass cable gland - WDCG series - ORTAC - nickel-plated brass / aluminium / stainless steel
Brass cable gland - WDCG series - ORTAC - nickel-plated brass / aluminium / stainless steel - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass, brass, stainless steel, aluminium
Protection level
IP68, IP66, for hazardous areas, armored
Other characteristics
PG thread, NPT, metric, for armored cables, double, threaded
Cable diameter

Max.: 4 mm
(0.16 in)

Min.: 0.8 mm
(0.03 in)

Thread diameter

Max.: 130 mm
(5.12 in)

Min.: 16 mm
(0.63 in)

Clamping range

Max.: 100 mm
(3.9 in)

Min.: 3.1 mm
(0.1 in)

Operating temperature

Max.: 180 °C
(356 °F)

Min.: -60 °C
(-76 °F)

Description

Product
Industrial type armoured cable glands - WDCG Series

Product Details
Type: WDCG (Double compression gland)
Certificates: PT, CE, RoHS, ISO9001, ISO14001, ISO45001
Materials: MS58 brass (with or without nickel plating), Stainless Steel AISI303 / 316L, Aluminium
Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-31:2009
Protection class: IP66 / IP68
Temperature ranges and seal materials: NBR -30 °C to +120 °C; NEOPRENE -40 °C to +100 °C; SILICONE -60 °C to +180 °C; TPE/V -30 °C to +100 °C
Cable type compatibility: SWA (Single wire armour); STA and other cables optional

Technical Data (table)
Product Size | Product Code | Standard AG | AG NPT | AG | A Min | A Max | B Min | B Max | Ø d (Armour) Min | Ø d (Armour) Max | GL min. mm | Wrench mm
16 | WDCGXX/16/X | M16x1,5 | 1/2" | PG9 | 3,1 | 8,6 | 6,1 | 13,2 | 0,8 | 1 | 15 | 24
20ss | WDCGXX/20ss/X | M20ssx1,5 | 1/2" | PG11ss | 3,1 | 8,6 | 6,1 | 13,2 | 0,8 | 1 | 15 | 24
20s | WDCGXX/20s/X | M20sx1,5 | 1/2" | PG11s | 6,1 | 11,6 | 9,5 | 15,9 | 0,8 | 1,25 | 15 | 24
20 | WDCGXX/20/X | M20x1,5 | 1/2" | PG13,5 | 6,5 | 13,9 | 12,5 | 20,9 | 0,8 | 1,25 | 15 | 30
25s | WDCGXX/25s/X | M25sx1,5 | 3/4" | PG21s | 11,1 | 19,9 | 14 | 22 | 1,25 | 1,6 | 15 | 38
25 | WDCGXX/25/X | M25x1,5 | 3/4" | PG21 | 11,1 | 19,9 | 18,2 | 26,2 | 1,25 | 1,6 | 15 | 38
32 | WDCGXX/32/X | M32x1,5 | 1" | PG29 | 18,2 | 26,2 | 23,7 | 33,9 | 1,6 | 2 | 15 | 45
40 | WDCGXX/40/X | M40x1,5 | 11/4" | PG36s | 23,7 | 33,9 | 27,9 | 40,4 | 1,6 | 2 | 15 | 55
50s | WDCGXX/50s/X | M50sx1,5 | 11/2" | PG36 | 29,5 | 38,1 | 35,2 | 46,7 | 2 | 2,5 | 15 | 60
50 | WDCGXX/50/X | M50x1,5 | 2" | PG42 | 35,6 | 44 | 40,4 | 53,1 | 2 | 2,5 | 15 | 70
63s | WDCGXX/63s/X | M63sx1,5 | 2" | PG48 | 40,1 | 49,9 | 45,6 | 59,4 | 2 | 2,5 | 15 | 75
63 | WDCGXX/63/X | M63x1,5 | 21/2" | - | 47,2 | 55,9 | 54,6 | 65,9 | 2 | 2,5 | 15 | 80
75s | WDCGXX/75s/X | M75sx1,5 | 21/2" | - | 52,8 | 61,9 | 59 | 72,1 | 2 | 2,5 | 15 | 90
75 | WDCGXX/75/X | M75x1,5 | 3" | - | 59,1 | 67,9 | 66,7 | 78,5 | 2,5 | 3 | 15 | 100
90 | WDCGXX/90/X | M90x2 | 3" | - | 66,6 | 79,9 | 76,2 | 90,4 | 3 | 3,5 | 15 | 115
100 | WDCGXX/100/X | M100x2 | - | - | 76 | 90 | 86,1 | 101,5 | 3,15 | 4 | 15 | 123
115 | WDCGXX/115/X | M115x2 | - | - | 86 | 97,9 | 101,5 | 110,3 | 3,15 | 4 | 15 | 133
130 | WDCGXX/130/X | M130x2 | - | - | 97 | 114,9 | 114,2 | 123,3 | 3,15 | 4 | 15 | 146

Technical specifications
  • Type: WDCG (Double compression gland)
  • Certificates: PT, CE, RoHS, ISO9001, ISO14001, ISO45001
  • Materials: MS58 brass (with or without nickel plating), Stainless Steel AISI303 / 316L, Aluminium
  • Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-31:2009
  • Protection class: IP66 / IP68
  • Seal material temperature ranges: NBR -30 °C to +120 °C; NEOPRENE -40 °C to +100 °C; SILICONE -60 °C to +180 °C; TPE/V -30 °C to +100 °C
  • Cable compatibility: SWA (Single wire armour); STA and other cables optional
  • Comprehensive dimensional data provided (sizes, codes, thread types, armour Ø ranges, GL and wrench sizes)
  • Technical drawing and datasheet available
