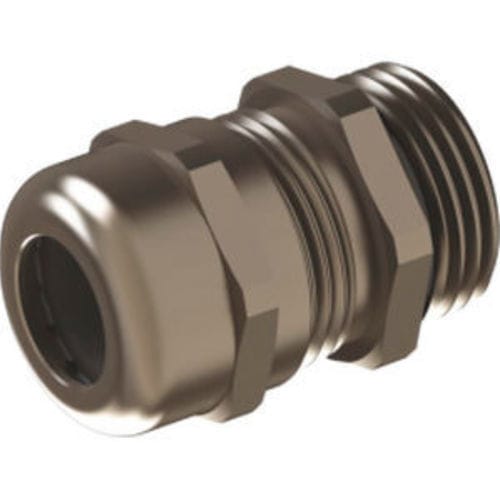

Nickel-plated brass cable gland ONBG series

nitrile butadiene rubber (NBR)PA6IP68

Product

• Metal cable glands – Standard type NPT, ONBG series

Materials and Components

• Cap nut: Nickel plated brass
• Clamping insert: Polyamide PA6 V2
• Sealing ring: TPV
• Gland body: Nickel plated brass
• O-ring: NBR
• Connection thread: NPT ANSI B1.20.1

General Properties

• Protection class: IP68 - 5 bar
• Temperature range: -20 °C to +100 °C; alternative -40 °C to +150 °C
• Easy to assemble
• Long thread versions available
• High strain relief

Technical Data
AG Thread | Code | H mm | GL mm | Wrench B mm | Wrench C mm | Clamping Range mm
1/4" | ONBG 01 | 22 | 15 | 14 | 14 | 3 - 6,5
3/8" | ONBG 02/ 01 | 22 | 15 | 18 | 14 | 3 - 6,5
3/8" | ONBG 02 | 23 | 15 | 18 | 17 | 4 - 8
3/8" | ONBG 02/03 | 24,5 | 15 | 20 | 20 | 5 - 10
1/2" | ONBG 03RS | 26,5 | 15 | 22 | 22 | 4 - 10
1/2" | ONBG 03 | 26,5 | 15 | 22 | 22 | 6 - 12
1/2" | ONBG 03/05 | 28 | 15 | 24 | 24 | 10 - 14
3/4" | ONBG 04 | 28 | 15 | 27 | 24 | 10 - 14
3/4" | ONBG 04ES | 31,5 | 15 | 30 | 30 | 9 - 17
3/4" | ONBG 04/06 | 31,5 | 15 | 30 | 30 | 13 - 18
1" | ONBG 05RS | 31,5 | 15 | 34 | 30 | 9 - 17
1" | ONBG 05 | 31,5 | 15 | 34 | 30 | 13 - 18
1" | ONBG 05/07 | 38 | 15 | 40 | 40 | 18 - 25
11/4" | ONBG 06 | 38 | 18 | 43 | 40 | 18 - 25
11/2" | ONBG 07 | 43 | 18 | 50 | 50 | 22 - 32
2" | ONBG 08 | 48 | 20 | 65 | 64 | 33 - 44
2" | ONBG 09 | 48 | 20 | 70 | 75 | 45 - 50
21/2" | ONBG 18s | 48 | 20 | 75 | 75 | 45 - 55
21/2" | ONBG 18 | 58 | 20 | 90 | 90 | 50 - 63
3" | ONBG 19s | 58 | 24 | 90 | 90 | 50 - 63
3" | ONBG 19 | 61 | 24 | 100 | 100 | 60 - 70

Characteristics / Technical specifications

• Materials: cap nut and gland body nickel plated brass; clamping insert polyamide PA6 V2; sealing ring TPV; O-ring NBR
• Connection thread: NPT ANSI B1.20.1
• Ingress protection: IP68 up to 5 bar
• Temperature ranges: -20 °C to +100 °C and -40 °C to +150 °C
• Properties: easy to assemble, long thread versions, high strain relief
