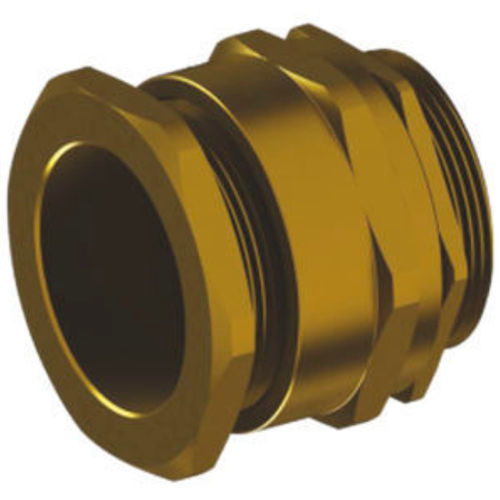

Brass cable gland A2 series
nickel-plated brassIP68IP66

Brass cable gland - A2 series - ORTAC - nickel-plated brass / IP68 / IP66
Brass cable gland - A2 series - ORTAC - nickel-plated brass / IP68 / IP66
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
brass, nickel-plated brass
Protection level
IP68, IP66
Other characteristics
NPT, for non-armored cables, metric, PG thread
Cable diameter

Max.: 78 mm
(3.07 in)

Min.: 8 mm
(0.31 in)

Thread diameter

Max.: 90 mm
(3.54 in)

Min.: 20 mm
(0.79 in)

Clamping range

Max.: 78 mm
(3.1 in)

Min.: 8 mm
(0.3 in)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Product name
Unarmoured Cable Gland A2 Series (BS 6121)

Overview
Type: A2 (single compression gland). Material: brass, with or without nickel plating. Standard: BS 6121. Protection class: IP66 and IP68. Temperature range: -20°C to +80°C. Thread options: Metric, NPT, BSP and PG. Application: for indoor or outdoor use with all types of unarmoured cables. Accessories: matching PVC shrouds, locknuts and earth tag available. Function: A2 glands provide a single pull-resistant seal on the outer sheath of unarmoured cable.

Technical Data (product sizes and codes)
  • 20s - A2-M20s - M20 x 1.5 - NPT 1/2" - Cable range 8 - 11.5 mm - GL 10
  • 20L - A2-M20L - M20 x 1.5 - NPT 1/2" - Cable range 11 - 13.5 mm - GL 10
  • 25s - A2-M25s - M25 x 1.5 - NPT 3/4" - Cable range 13 - 16.5 mm - GL 10
  • 25L - A2-M25L - M25 x 1.5 - NPT 3/4" - Cable range 16 - 19.5 mm - GL 10
  • 32L - A2-M32L - M32 x 1.5 - NPT 1" - Cable range 19 - 25.5 mm - GL 10
  • 40s - A2-M40s - M40 x 1.5 - NPT 1 1/4" - Cable range 23 - 29 mm - GL 15
  • 40L - A2-M40L - M40 x 1.5 - NPT 1 1/4" - Cable range 25 - 32 mm - GL 15
  • 50s - A2-M50s - M50 x 1.5 - NPT 1 1/2" - Cable range 31.5 - 37 mm - GL 15
  • 50L - A2-M50L - M50 x 1.5 - NPT 2" - Cable range 36.5 - 43 mm - GL 15
  • 63s - A2-M63s - M63 x 1.5 - NPT 2" - Cable range 42.5 - 50 mm - GL 15
  • 63L - A2-M63L - M63 x 1.5 - NPT 2 1/2" - Cable range 49.5 - 55 mm - GL 15
  • 75s - A2-M75s - M75 x 1.5 - NPT 2 1/2" - Cable range 54.5 - 61 mm - GL 15
  • 75L - A2-M75L - M75 x 1.5 - NPT 3" - Cable range 60.5 - 67 mm - GL 15
  • 90 - A2-M90 - M90 x 2 - NPT 3" - Cable range 65 - 78 mm - GL 20


Characteristics / Technical specifications
  • Type: A2 (single compression gland)
  • Material: brass, with or without nickel plating
  • Standard: BS 6121
  • Protection class: IP66 and IP68
  • Temperature range: -20°C to +80°C
  • Thread options: Metric, NPT, BSP and PG
  • Application: indoor or outdoor use with all types of unarmoured cables
  • Accessories: PVC shrouds, locknuts and earth tag available
  • Function: single pull-resistant seal on the outer sheath of unarmoured cable
  • Available sizes and product codes: see Technical Data section above
