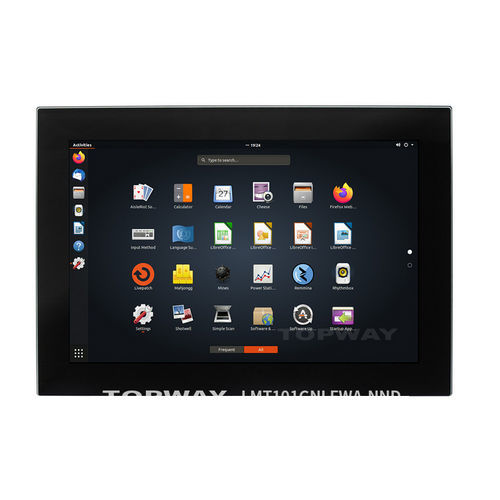

TFT LCD display module LMT101GNLFWA-NNDcapacitive touch screencolor1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen
- Type
- color
- Format
- 1280 x 800
- Screen size
- 10.1"
- Applications
- for medical equipment, industrial, for control panels, control, instrumentation, information, HMI, for transportation, for marine applications, medical, for the energy sector, for weighing devices
- Interface
- LVDS
- Configuration/mounting
- outdoor, panel-mount
- Protection level
- IP65, rugged, waterproof
- Other characteristics
- wide-viewing angle, high-contrast, high-brightness, sunlight-readable, LED-backlit, with cover glass, adjustable brightness
- Width
258.66 mm
(10.1835 in)- Height
177.3 mm
(6.9803 in)- Depth
12.55 mm
(0.49 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product Overview
10.1" TFT display with high brightness and optical bonding capacitive touch, is suitable for industry control, automotive application.
Key Information
Specifications
10.1" TFT display with high brightness and optical bonding capacitive touch, is suitable for industry control, automotive application.
Key Information
- Brightness: 850 cd/m²
- Operating temperature: -20°C to 70°C
- Wide viewing angle: Yes
- Outline (W x H x D): 258.66 x 177.3 x 12.55 mm
- Active Area (A. A.): 216.96 x 135.6 mm
- Size: 10.1"
Specifications
- Model: LMT101GNLFWA-NND
- Display type: Color TFT LCD
- Resolution: 1280 x 800 (WXGA)
- Touch type: CTP (capacitive touch panel)
- Interface: LVDS
- Brightness: 850 cd/m²
- Operating temperature range: -20°C to 70°C
- Wide viewing angle: Yes
- Outline dimensions (W x H x D): 258.66 x 177.3 x 12.55 mm
- Active area: 216.96 x 135.6 mm
