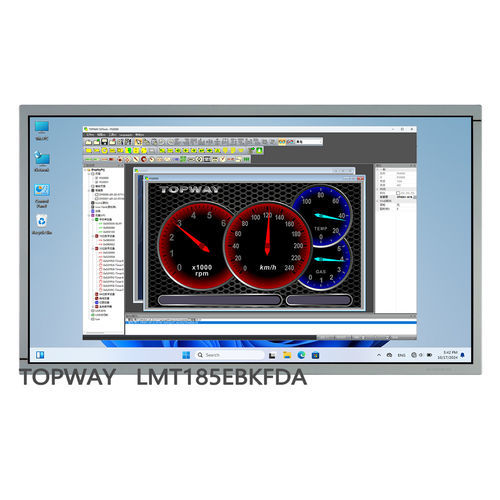

TFT LCD display module LMT185EBKFDAcolor1366 x 76818.5"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 1366 x 768
- Screen size
- 18.5"
- Applications
- industrial, for control panels, HMI, medical
- Interface
- LVDS
- Structure
- compact
- Other characteristics
- wide-viewing angle
- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Overview
This 18.5-inch color TFT LCD module from Topway Display is designed for embedded and industrial display applications, offering a compact footprint and wide viewing characteristics suitable for control panels, kiosks and HMI devices.
Key features
Mechanical & electrical
Applications & integration
Suitable for industrial panels, embedded systems, medical displays and commercial kiosks. Integration requires an LVDS-compatible controller board and appropriate mounting; contact Topway Display for customization, interface options and operating-condition verification.
This 18.5-inch color TFT LCD module from Topway Display is designed for embedded and industrial display applications, offering a compact footprint and wide viewing characteristics suitable for control panels, kiosks and HMI devices.
Key features
- Resolution: 1366 x 768
- Interface: LVDS
- Voltage: 5 V
- Operating temperature: 0°C to 50°C
- Wide viewing angle
- Brightness: 250 cd/m²
Mechanical & electrical
- Outline (W x H x D): 430.4 mm x 254.6 mm x 10.9 mm
- Active area: 409.8 mm x 230.4 mm
- Diagonal size: 18.5"
- Connector/interface pinout: LVDS standard
Applications & integration
Suitable for industrial panels, embedded systems, medical displays and commercial kiosks. Integration requires an LVDS-compatible controller board and appropriate mounting; contact Topway Display for customization, interface options and operating-condition verification.
