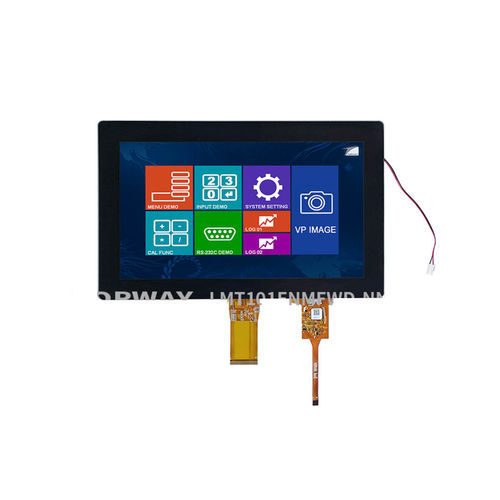

TFT LCD display module LMT101ENMFWD-NND-1capacitive touch screencolorgraphic
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen
- Type
- color, graphic
- Format
- 1024 x 768
- Screen size
- 10.1"
- Applications
- industrial, for control panels, HMI
- Interface
- RGB
- Structure
- compact
- Configuration/mounting
- panel-mount, kiosk
- Width
260 mm
(10.2362 in)- Height
163 mm
(6.4173 in)- Thickness
8.95 mm
(0.352 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Key specifications
Mechanical & integration
Applications & compatibility
Ordering information
- 10.1-inch TFT LCD display module for RGB input
- Model: LMT101ENMFWD-NND-1
- Brightness: 350 cd/m²
- Touch: Capacitive Touch Panel (CTP)
Key specifications
- Resolution: 1024×600
- Interface: RGB
- Display type: TFT LCD
- Diagonal size: 10.1 inch
- Operating temperature: -20°C to 70°C
- Wide viewing angle: No
- Outline (W×H×D): 260.00 × 163.00 × 8.95 mm
- Active area (W×H): 222.72 × 125.28 mm
- Brightness: 350 cd/m²
Mechanical & integration
- Compact 8.95 mm profile suitable for panel mounting
- Connector: RGB interface — consult datasheet for pinout and timing
- Use outline dimensions and active area for cut-out and bezel design
Applications & compatibility
- Embedded systems, industrial HMI, control panels and kiosks
- Intended for systems requiring RGB input and capacitive touch functionality
Ordering information
- Model: LMT101ENMFWD-NND-1
- Refer to the product datasheet for electrical characteristics, timing, mounting details and connector assignment
