LCD display module LMT070DAMFWA-NBD
capacitive touch screencolor1024 x 600

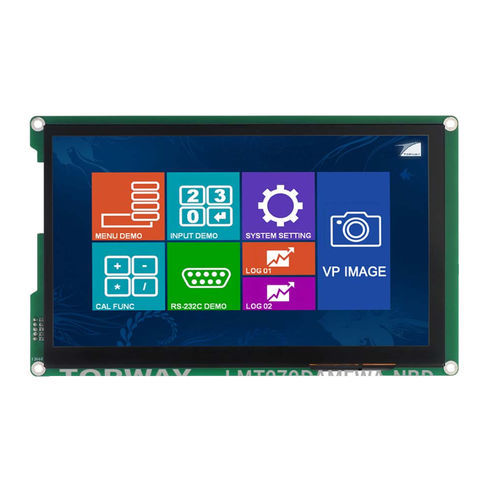

LCD display module - LMT070DAMFWA-NBD - TOPWAY LCD - capacitive touch screen / color / 1024 x 600
LCD display module - LMT070DAMFWA-NBD - TOPWAY LCD - capacitive touch screen / color / 1024 x 600
Add to favorites
Compare this product
Go to the TOPWAY LCD website for more information

Characteristics

Screen type
LCD, capacitive touch screen
Type
color
Format
1024 x 600
Screen size
7"
Interface
LVDS
Other characteristics
wide-viewing angle
Width

180 mm
(7.0866 in)

Height

109.5 mm
(4.311 in)

Depth

19.3 mm
(0.76 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Product name
7.0-inch color LCD display module LVDS 1024x600

Model
LMT070DAMFWA-NBD

Main description
  • Brightness: 400 cd/m²
  • Interface: LVDS
  • Touch panel: CTP (capacitive touch)

More information
Detailed information on resolution, dimensions and operating environment is provided below.

Features / Technical specifications
  • Resolution: 1024 x 600
  • Display size (diagonal): 7.0-inch
  • Operating voltage: 3.3V
  • Operating temperature range: -20°C ~ 70°C
  • Wide viewing angle: Yes
  • Overall dimensions (W x H x D): 180.0 x 109.5 x 19.3 mm
  • Active area (A.A.): 154.21 x 85.92 mm
  • Touch type: CTP (capacitive touch panel)
  • Brightness: 400 cd/m²
