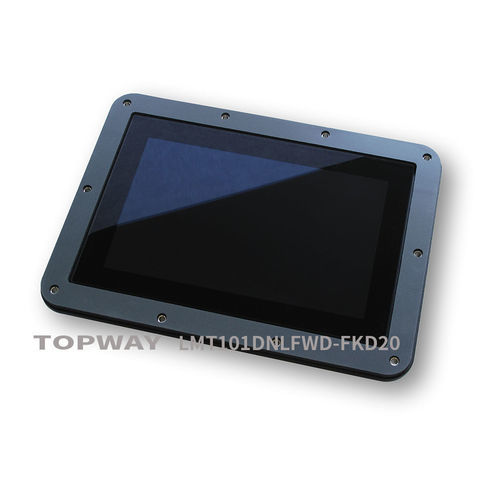

TFT LCD display LMT101DNLFWD-FKD20capacitive touch screencolor1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen
- Type
- color
- Format
- 1280 x 800
- Screen size
- 10.1"
- Applications
- for electric vehicle charging stations
- Interface
- LVDS
- Protection level
- IP65
- Other characteristics
- high-brightness, wide-viewing angle
- Length
Max.: 308 mm
(12.126 in)Min.: 308 mm
(12.126 in)- Width
Max.: 228 mm
(8.9764 in)Min.: 228 mm
(8.9764 in)- Height
Max.: 45.8 mm
(1.8031 in)Min.: 45.8 mm
(1.8031 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Overview
Basic information
Technical specifications
- 10.1-inch color TFT LCD module with 1280×800 resolution and capacitive touch panel (CTP).
- Brightness: 850 cd/m².
- Front protection: IK08 tamper proof; IP65 front and side ingress protection.
- Designed for EV charger display terminals (meets State Grid Corp. of China standard).
- All-in-one structure for easy assembly; units already in mass production for solar energy, BMS and EV charger applications.
- Manufacturer committed to timely delivery and supply stability.
Basic information
- Model: LMT101DNLFWD-FKD20
- Resolution: 1280 x 800
- Interface: LVDS
- Voltage: 5V / 12V
- Operating temperature: -20°C to 70°C
- Wide viewing angle: Yes
- Outline (overall size): 308.0 x 228.0 x 45.8 mm
- Display size: 10.1 inch
- Active area (A.A.): 216.96 x 135.6 mm
- Touch screen: Capacitive touch panel (CTP)
Technical specifications
- Display type: Color TFT LCD, 10.1 inch
- Resolution: 1280 x 800 pixels
- Interface: LVDS
- Touch: CTP (capacitive)
- Brightness: 850 cd/m²
- Protection: IK08 tamper proof
- Ingress protection: IP65 (front and side)
- Intended applications: EV charger display terminals (meets State Grid Corp. of China standard), solar energy systems, BMS, EV chargers
- Structure: All-in-one for easy assembly
- Power supply: 5V / 12V
- Operating temperature range: -20°C to 70°C
- Wide viewing angle: Yes
- Outline dimensions: 308.0 x 228.0 x 45.8 mm
- Active area: 216.96 x 135.6 mm
- Mass production status: Units shipped for multiple applications
