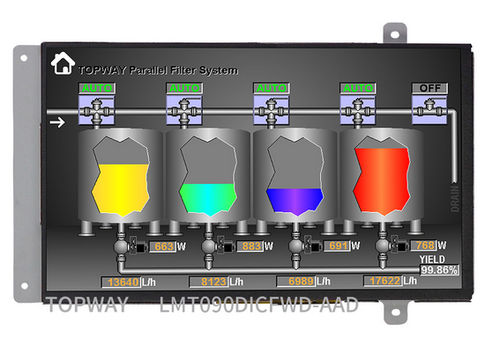

LCD display LMT090DICFWD-AADTFT LCDcapacitive touch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, TFT LCD, capacitive touch screen
- Type
- color
- Format
- 800 x 480
- Screen size
- 9"
- Interface
- HDMI, VGA
- Length
226.9 mm
(8.933 in)- Width
150.5 mm
(5.9252 in)- Height
24.8 mm
(0.9764 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
- Resolution: 800x480
- Interface: HDMI, VGA
- Voltage: 12V
- Temperature Range: 0°C ~ 50°C
- Wide Viewing Angle: No
- Outline Dimensions: 226.9 x 150.5 x 24.8mm
- Size: 9"
- Active Area (A.A.): 198.00 x 111.69mm
- Touch Screen: CTP
- Brightness: 200 cd/m²
Technical Specifications / Features:
- Display Type: Color TFT LCD Module
- Screen Size: 9 inch
- Resolution: 800x480 pixels
- Interfaces: HDMI, VGA
- Operating Voltage: 12V
- Operating Temperature: 0°C to 50°C
- Wide Viewing Angle: No
- Outline Dimensions: 226.9 x 150.5 x 24.8 mm
- Active Area: 198.00 x 111.69 mm
- Touch Screen Type: Capacitive Touch Panel (CTP)
- Brightness: 200 cd/m²
