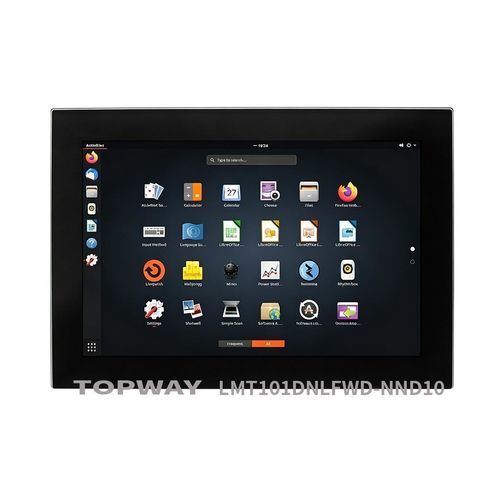

Capacitive touch screen display LMT101DNLFWD-NND10TFT LCDcolor1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- capacitive touch screen, TFT LCD
- Type
- color
- Format
- 1280 x 800
- Screen size
- 10.1"
- Interface
- LVDS
- Protection level
- IP65
- Other characteristics
- sunlight-readable, high-brightness, wide-viewing angle
- Length
Min.: 258.66 mm
(10.183 in)Max.: 258.66 mm
(10.183 in)- Width
Min.: 177.3 mm
(6.9803 in)Max.: 177.3 mm
(6.9803 in)- Height
Min.: 12.55 mm
(0.4941 in)Max.: 12.55 mm
(0.4941 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Highlights
Technical information
Specifications
- Brightness: 850 cd/m²
- IP65 front-side waterproof
- Resolution: 1280 x 800 (WXGA)
- Sunlight-readable (high brightness)
- Capacitive touch (CTP)
- Iteration of LMT101DNLFWD-NND
Technical information
- Resolution: 1280 x 800
- Interface: LVDS
- Operating temperature: -20°C to 70°C
- Wide viewing angle: Yes
- Outline dimensions: 258.66 x 177.3 x 12.55 mm
- Diagonal size: 10.1 inch
- Active area: 216.96 x 135.6 mm
- Touch screen: Capacitive Touch Panel (CTP)
Specifications
- Model: LMT101DNLFWD-NND10
- Display type: Color TFT LCD
- Diagonal size: 10.1 inch
- Resolution: 1280 x 800
- Interface: LVDS
- Brightness: 850 cd/m²
- Front/side protection: IP65 (waterproof)
- Sunlight readable: Yes
- Touch: Capacitive Touch Panel (CTP)
- Operating temperature range: -20°C to 70°C
- Wide viewing angle: Yes
- Active area: 216.96 x 135.6 mm
- Outline dimensions: 258.66 x 177.3 x 12.55 mm
