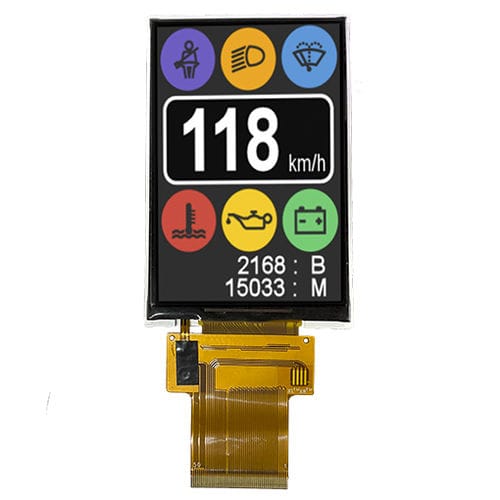

LCD/TFT display module TM035PDHG09

colorwith touch screen480x320

A TFT LCD has a liquid crystal layer between a glass substrate formed with TFTs and transparent pixel electrodes and another glass substrate with a color filter (RGB) and transparent counter electrodes. Each pixel in an active matrix is paired with a transistor that includes capacitor which gives each sub-pixel the ability to retain its charge, instead of requiring an electrical charge sent each time it needed to be changed. This means that TFT LCD displays are more responsive. 3.5 inch TFT LCD display module MCU/RGB+SPI Interface Size：3.5 inch Resolution：320(RGB) x 240 LCM (W x H x D) (mm)：54.76 x 84.19 x 2.0 Active Area(mm)：48.96x73.44 Technology Type：a-Si  TFT Pixel Configuration：R.G.B.  Vertical Stripe Pixel pitch(mm)：0.153(H)x0.153(V) Display Mode：TM with Normally white Surface Treatment:HC Viewing Direction:6 o'clock With /Without TSP:Without TSP Interface - MCU/RGB+SPI
