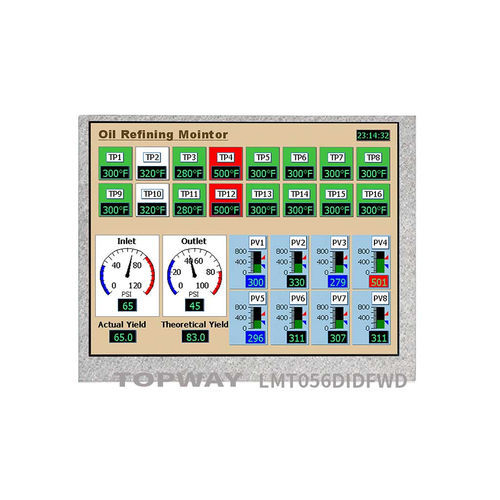

TFT LCD display module LMT056DIDFWD

color640 x 4805.6"

Product overview
The LMT056DIDFWD is a 5.6 inch color TFT LCD module with 640×480 resolution and RGB parallel interface. Typical luminance is 350 cd/m² and the module operates from -20°C to 70°C with a 3.3 V supply.

Key specifications

• Model: LMT056DIDFWD
• Diagonal size: 5.6 inch
• Resolution: 640 × 480 pixels
• Interface: RGB (parallel)
• Supply voltage: 3.3 V
• Brightness: 350 cd/m²
• Operating temperature: -20°C to 70°C

Technical details

• Active area: 112.896 × 84.672 mm
• Outline (W × H × T): 126.5 × 100.0 × 5.7 mm
• Viewing angle: standard (not wide-view)
• Panel type: color TFT LCD

Applications & integration

• Suitable for industrial HMI, instrumentation and control panels
• Integration into kiosks, handheld devices and embedded systems
• Designed for equipment requiring compact 5.6" displays with RGB interface

Ordering & compliance

• Standard model: LMT056DIDFWD
• Operating voltage: 3.3 V
• Operating temperature range: -20°C to 70°C
• Contact supplier for availability, mechanical drawings and customization
