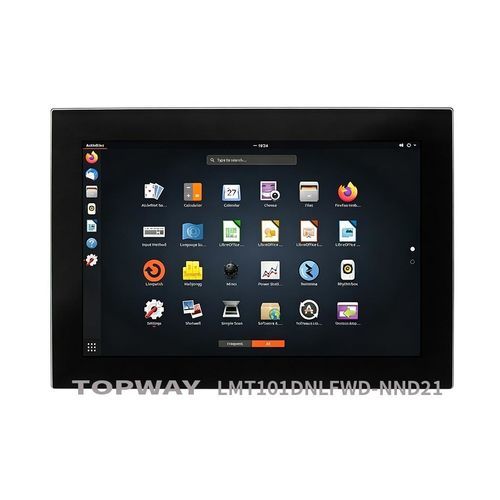

Touch screen display LMT101DNLFWD-NND21capacitive touch screenTFT LCDcolor
Add to favorites
Compare this product
Characteristics
- Screen type
- touch screen, capacitive touch screen, TFT LCD
- Type
- color
- Format
- 1280 x 800
- Screen size
- 10.1"
- Applications
- industrial, for the energy sector, digital signage
- Interface
- LVDS
- Other characteristics
- high-brightness, sunlight-readable, wide-viewing angle, with cover glass
- Length
Max.: 258.66 mm
(10.183 in)Min.: 258.66 mm
(10.183 in)- Width
Max.: 177.3 mm
(6.9803 in)Min.: 177.3 mm
(6.9803 in)- Height
Max.: 16.1 mm
(0.6339 in)Min.: 16.1 mm
(0.6339 in)- Thickness
16.1 mm
(0.634 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product highlights
Technical information
Specifications
- Brightness: 850 cd/m², sunlight readable
- Tempered glass cover with IK08 tamper protection
- Lens silk screen for outdoor use — long-term weather resistance
- Optical bonding for improved durability and contrast
- Capacitive touch (CTP) optimized for industrial use
- Typical applications: industrial power, energy storage, outdoor displays
- Successor to model LMT101DNLFWD-NND-1
Technical information
- Resolution: 1280 x 800
- Interface: LVDS
- Operating temperature: -20°C to 70°C
- Wide viewing angle
- Outline dimensions: 258.66 x 177.3 x 16.1 mm
- Display size: 10.1" (active area 216.96 x 135.6 mm)
- Touch screen: Capacitive Touch Panel (CTP)
Specifications
- Model: LMT101DNLFWD-NND21
- Display type: Color TFT LCD, 10.1 inch
- Resolution: 1280 x 800
- Interface: LVDS
- Touch: Capacitive Touch Panel (CTP)
- Brightness: 850 cd/m²
- Cover: Tempered glass, IK08
- Optical bonding: Yes
- Outline dimensions: 258.66 x 177.3 x 16.1 mm
- Active area: 216.96 x 135.6 mm
- Operating temperature: -20°C to 70°C
- Typical applications: industrial power, energy storage, outdoor applications
