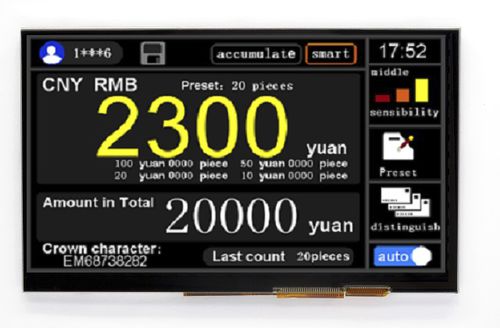

TFT display module TM070RDH13LCD/ISTNtouch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, LCD/ISTN, touch screen
- Type
- color
- Format
- 800 x 480, high-resolution
- Applications
- industrial, control, for control panels, information, safety, power
- Configuration/mounting
- indoor, built-in
- Other characteristics
- cost-effective, high-contrast, electronic, high refresh rate, LED-backlit, custom
Description
This 7 inch TFT LCD display is made by TianMa,it suit for industry control, instrumentatiom,medical electronics, power electric equipment applications.
• - Screen Size(Diagonal) : 7.0”
• - Resolution:800x480
• - Display Mode :TM with Normal White
• - Voltage:3.3V
• - Viewing Direction : 12H
• - Outline Dimension : 164.9x100.0 x 5.7(mm)
• - Active Area :154.08x 85.92(mm)
• - Interface: RGB 24 bit with TCON
• - Backlight:LED
• - Operating Temperature -20 ~ +70°C
• - Storage Temperature -30 ~ +80°C
