TFT LCD display module LMT035FNAFSA
color320 x 2403.5"

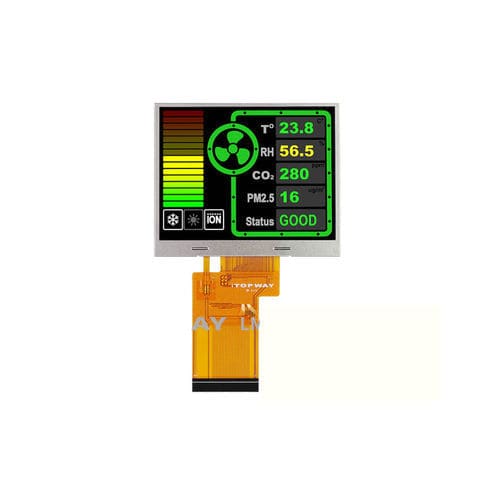

TFT LCD display module - LMT035FNAFSA - TOPWAY LCD - color / 320 x 240 / 3.5"
TFT LCD display module - LMT035FNAFSA - TOPWAY LCD - color / 320 x 240 / 3.5"
Add to favorites
Compare this product
Go to the TOPWAY LCD website for more information

Characteristics

Screen type
TFT LCD
Type
color
Format
320 x 240
Screen size
3.5"
Applications
industrial
Interface
RGB
Other characteristics
wide-viewing angle
Width

76.9 mm
(3.0276 in)

Height

63.9 mm
(2.5157 in)

Thickness

3.15 mm
(0.124 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

Product overview
  • 3.5" color TFT LCD module, model LMT035FNAFSA
  • Resolution: 320 x 240 (QVGA)
  • Interface: RGB parallel


Key specifications
  • Brightness: 1000 cd/m²
  • Operating voltage: 3.3 V
  • Active area: 70.08 x 52.56 mm
  • Outline dimensions: 76.9 x 63.9 x 3.15 mm
  • Viewing angle: wide


Mechanical dimensions
  • Module size: 3.5"
  • Outline: 76.9 mm x 63.9 mm x 3.15 mm
  • Active area (A.A.): 70.08 mm x 52.56 mm


Environmental and electrical
  • Operating temperature: -30°C to 85°C
  • Operating voltage: 3.3 V


Applications
  • Industrial instrumentation, control panels and embedded systems requiring a compact color display


Ordering information
  • Model number: LMT035FNAFSA
