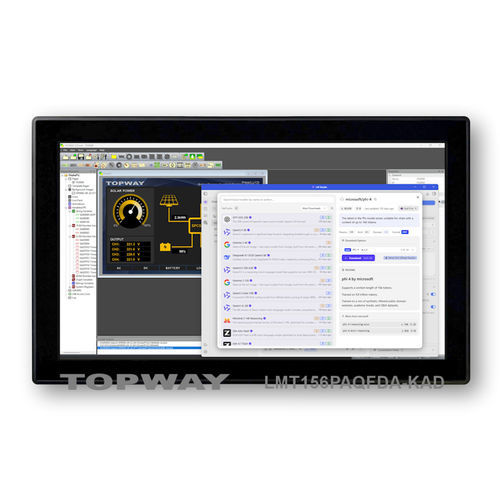

TFT-LCD monitor LMT156PAQFDA-KADwith touchscreencapacitive touch screenindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, capacitive touch screen, with touchscreen
- Applications
- industrial, for displays, POS, for HMI interface, medical
- Display size
- 15.6"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, wall-mount, flush-mount
- Other characteristics
- HDMI, VGA, compact, wide viewing angle, embedded, plug-and-play
- Width
387 mm
(15.2362 in)- Height
236.3 mm
(9.3031 in)- Thickness
40 mm
(1.575 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Highlights
Key specifications
Mechanical & interfaces
Environmental & performance
Typical applications & supply
- 15.6" color TFT LCD, Full HD 1920×1080
- 300 cd/m² brightness and wide viewing angle
- CTP (capacitive touch panel) integrated
- All-in-one structure for quick installation; front/rear flush mounting and VESA-standard mounting hole
- HDMI-standard port (plug and play) and VGA input
- Excellent ESD and RF emission (RE) performance
- Operating temperature 0°C to 50°C; 12V supply
Key specifications
- Model: LMT156PAQFDA-KAD
- Display type: Color TFT LCD, 15.6 inch
- Resolution: 1920 × 1080 (FHD)
- Brightness: 300 cd/m²
- Active area (A.A.): 344.16 mm × 193.59 mm
- Outline dimensions: 387.0 mm × 236.3 mm × 40.0 mm
- Interface: HDMI, VGA
- Touch: CTP (capacitive touch panel)
- Voltage: 12 V
- Operating temperature: 0°C to 50°C
- Wide viewing angle: Yes
- Casing: Plastic case
Mechanical & interfaces
- Front/rear flush mounting supported
- VESA-standard mounting hole for wall mounting
- Connector: HDMI for video plug-and-play; VGA for legacy systems
- Compact all-in-one housing for fast integration into industrial enclosures
Environmental & performance
- Operating temperature range: 0°C to 50°C
- ESD protection and RF emission performance suitable for industrial and medical environments
- Plastic casing with stable mechanical dimensions
Typical applications & supply
- Medical IVD equipment, smart grid and power monitoring, high-end POS terminals
- Suitable for embedded systems, control panels and wall-mounted displays
- On-time delivery and reliable long-term supply available upon request
