TFT display module LMT043GNFFWA

color480 x 2724.3"

Product name

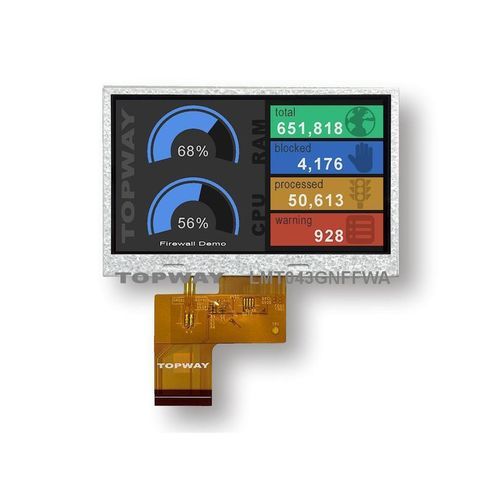

4.3-inch color TFT display module LMT043GNFFWA MCU interface 480 x 272

Highlight:

• Compact & Save energy
• MCU / Dual SPI / Quad SPI interfaces supported
• Lower system cost versus RGB solution
• All Viewing Angle
• Touch and enclosure options available

Key information

• Resolution: 480 x 272
• Interface: MCU
• Operating voltage: 3.3V
• Operating temperature: -20°C to 70°C
• Wide viewing angle: Yes
• Outline dimensions: 105.5 x 67.2 x 2.9 mm
• Size: 4.3 inch
• Active area (A.A.): 95.04 x 53.86 mm
• Luminance: 400 cd/m²

Overview
This 4.3-inch color TFT display module features an MCU interface and a standard resolution of 480 x 272 pixels. With a typical operating voltage of 3.3V and an operating temperature range from -20°C to 70°C, it offers a wide viewing angle and compact outline dimensions, making it suitable for embedded systems and industrial HMI applications requiring moderate resolution and small footprint.

Features / Specifications (detailed)

• Model: LMT043GNFFWA
• Panel size: 4.3 inch
• Resolution: 480 x 272 pixels
• Interface type: MCU
• Operating voltage: 3.3V
• Operating temperature range: -20°C to 70°C
• Wide viewing angle: Yes
• Outline dimensions: 105.5 x 67.2 x 2.9 mm
• Active area (A.A.): 95.04 x 53.86 mm
• Luminance: 400 cd/m²
