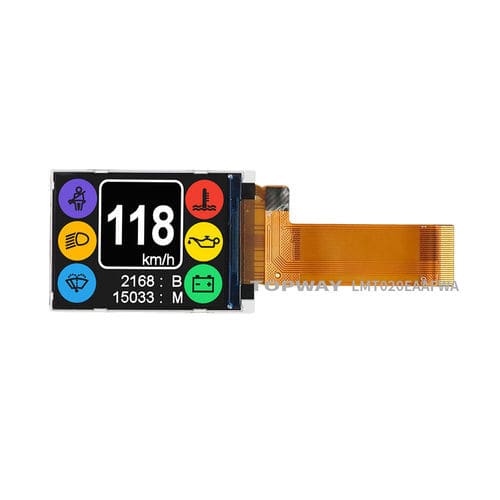

TFT LCD display module LMT020EAAFWA
color320 x 2402"

TFT LCD display module - LMT020EAAFWA - TOPWAY LCD - color / 320 x 240 / 2"
TFT LCD display module - LMT020EAAFWA - TOPWAY LCD - color / 320 x 240 / 2"
Add to favorites
Compare this product
Go to the TOPWAY LCD website for more information

Characteristics

Screen type
TFT LCD
Type
color
Format
320 x 240
Screen size
2"
Interface
MCU
Other characteristics
wide-viewing angle
Width

51.2 mm
(2.0157 in)

Height

35.7 mm
(1.4055 in)

Thickness

2.4 mm
(0.094 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Product overview2.0 inch color TFT LCD moduleInterface: MCUBrightness: 300 cd/m²Main specificationsResolution: 320 x 240Operating voltage: 2.8VOperating temperature: -20°C ~ 70°CWide viewing angle: yesOverall dimensions: 51.20 x 35.70 x 2.40 mmDiagonal size: 2.0 inchActive area (A.A.): 40.8 x 30.6 mmDocumentationProduct PDF (matching model technical datasheet available): LMT020EAAFWA.pdfFeatures / Technical specificationsModel: LMT020EAAFWADisplay type: TFT color LCDDisplay size: 2.0 inchResolution: 320 x 240 pixelsInterface: MCUOperating voltage: 2.8VOperating temperature range: -20°C to 70°CWide viewing angle supported: yesOutline dimensions (W x H x D): 51.20 x 35.70 x 2.40 mmActive display area (A.A.): 40.8 x 30.6 mmBrightness: 300 cd/m²
