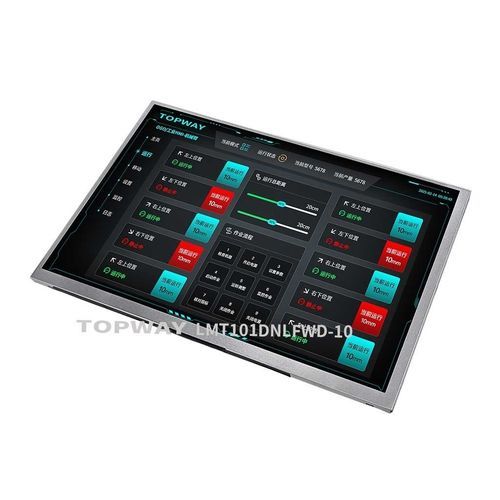

LCD monitor LMT101DNLFWD-10

TFT-LCDTFT10.1"

Product Highlights

• Brightness: 1000 cd/m² — sunlight readable
• Wide viewing angle for consistent image quality
• Backlight lifetime >50,000 hours for long-term operation
• Supports PWM backlight dimming

Basic Information
Resolution: 1280x800
Interface: LVDS
Supply voltage: 3.3 V
Operating temperature: -20°C ~ 70°C
Wide viewing angle: Yes
Outline (W x H x T): 229.80 x 149.00 x 9.23 mm
Size: 10.1 inch
Active area: 216.96 x 135.60 mm

Technical specifications

• Model: LMT101DNLFWD-10
• Display type: Color TFT LCD
• Diagonal size: 10.1 inch
• Resolution: 1280 x 800 (WXGA)
• Interface: LVDS
• Supply voltage: 3.3 V
• Operating temperature range: -20°C to 70°C
• Wide viewing angle: Yes
• Outline dimensions: 229.80 x 149.00 x 9.23 mm
• Active area: 216.96 x 135.60 mm
• Brightness: 1000 cd/m² (sunlight readable)
• Backlight lifetime: >50,000 hours
• Backlight dimming: PWM support
