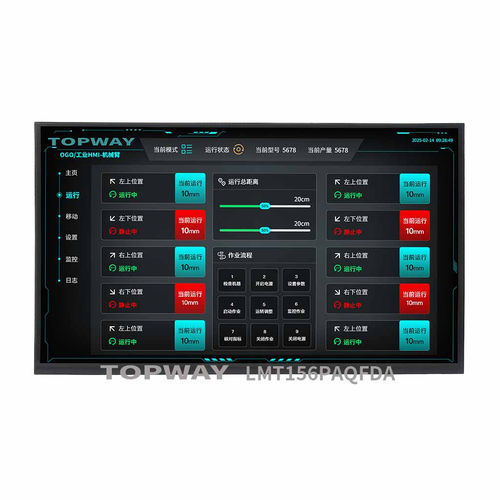

TFT LCD display module LMT156PAQFDAcolor1920 x 1080full HD
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 1920 x 1080, full HD
- Screen size
- 15.6"
- Applications
- industrial, instrumentation
- Interface
- LVDS
- Other characteristics
- wide-viewing angle
- Width
350.66 mm
(13.8055 in)- Height
205.24 mm
(8.0803 in)- Thickness
6.1 mm
(0.24 in)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Product overview
Key information
Description
Specifications
- Model: LMT156PAQFDA
- Color TFT LCD module, 15.6-inch, Full HD 1920 x 1080
- Interface: LVDS
Key information
- Resolution: 1920 x 1080
- Size: 15.6-inch
- Interface: LVDS
- Supply voltage: 3.3V
- Operating temperature: -10°C to 60°C
- Wide viewing angle: Yes
- Outline (mm): 350.66 x 205.24 x 6.10
- Active area (mm): 344.16 x 193.59
- Brightness: 350 cd/m²
Description
- 15.6-inch color TFT LCD module for embedded and industrial display applications requiring Full HD resolution and LVDS interface.
- Designed for wide viewing-angle performance and standard 3.3V logic supply; suitable for HMIs, control panels and instrumentation.
Specifications
- Model: LMT156PAQFDA
- Panel size: 15.6-inch
- Resolution: 1920 x 1080 (Full HD)
- Interface: LVDS
- Supply voltage: 3.3V
- Operating temperature range: -10°C to 60°C
- Wide viewing angle: Yes
- Outline dimensions (W x H x T): 350.66 x 205.24 x 6.10 mm
- Active area (W x H): 344.16 x 193.59 mm
- Brightness: 350 cd/m²
