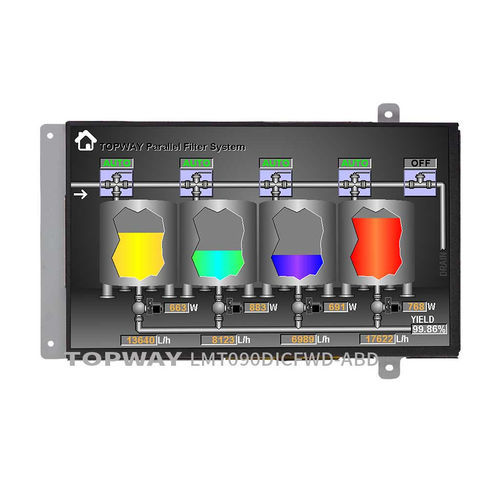

TFT LCD display module LMT090DICFWD-ABD

capacitive touch screencolor800 x 480

Overview
This 9.0-inch color TFT LCD module features an LVDS interface and 800×480 resolution, designed for embedded and industrial touchscreen applications. It supports projected capacitive touch panels (CTP) and offers 250 cd/m² brightness with a wide operating temperature range.

Main specifications

• Model: LMT090DICFWD-ABD
• Resolution: 800 x 480
• Interface: LVDS
• Size (Diagonal): 9.0"
• Active Area (A. A.): 198.00 x 111.69 mm
• Outline (W x H x D): 226.90 x 150.50 x 24.15 mm
• Voltage: 3.3 V
• Operating Temperature: -20°C ~ 70°C
• Brightness: 250 cd/m²
• Touch Screen: CTP (Projected Capacitive)
• Wide Viewing Angle: No

Mechanical & electrical

• Outline dimensions for mechanical integration: 226.90 x 150.50 x 24.15 mm
• Active area: 198.00 x 111.69 mm
• Operating voltage: 3.3 V

Environmental & touch

• Operating temperature range: -20°C to 70°C
• Brightness: 250 cd/m² (typ.)
• Touch compatibility: supports projected capacitive touch panels (CTP)
